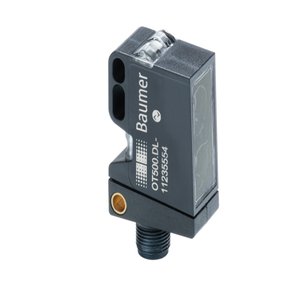

Baumer OT500.SL-GDGQJ.72F (11240054) | Contact For Best
Technical Specifications of Baumer Photoelectric Sensor With Io-Link OT500.SL-GDGQJ.72F 11240054:
| Spec | Value |
|---|---|
| Type | Light barrier |
| Scanning range Sa | 85% ... 80% Sde |
| Output circuit | Push-pull / IO-Link, Push-pull |
| Connection types | Connector M12 5 pin |
Baumer Photoelectric Sensor With Io-Link OT500.SL-GDGQJ.72F, 11240054 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Time of Flight |
| Background position Sde | 500 … 2500 mm |
| Scanning range Sa | 85% ... 80% Sde |
| Smallest object recognizable typ. | |
| Power on indication | LED green |
| Alignment / soiled lens indicator | |
| Output indicator | LED yellow / LED red |
| Sensing distance adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1° |
| Light source | Pulsed red laser diode |
| Wave length | 680 nm |
| Response time / release time | < 4 ms (High Speed Mode), < 8 ms (Standard Mode), < 50 ms (Long Range Mode) |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Current consumption typ. | |
| Voltage drop Vd | <2 VDC |
| Output function | Dark operate, switchable |
| Output circuit | Push-pull / IO-Link, Push-pull |
| Output current | 50 mA, sum of all outputs |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Mechanical mounting | |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 5 pin |
| Cable characteristics | |
| Protection class | IP 67 |
| Operating temperature | -20 … +50 °C |
Obtain a Quote for Baumer Photoelectric Sensor With Io-Link OT500.SL-GDGQJ.72F part no: 11240054 at economical prices. Specifications Overview for OT500.SL-GDGQJ.72F, 11240054 reveals Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 85% ... 80% Sde with adjustable sensing distance Teach-in and IO-Link. It operates using a Pulsed red laser diode light source with a wave length of 680 nm. The voltage supply range is 12 … 30 VDC, with a current consumption of 60 mA. The voltage drop (Vd) is less than <2 VDC, with Dark operate, switchable output functions. The output circuit is Push-pull / IO-Link, Push-pull, and the output current is rated at 50 mA, sum of all outputs. With a width of 18 mm and a height of 45 mm, the housing is made of durable Plastic (ASA, PMMA). This sensor is equipped with a Connector M12 5 pin connection. Take the First Step with a Quote for your requirement of Baumer Photoelectric Sensor With Io-Link. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
