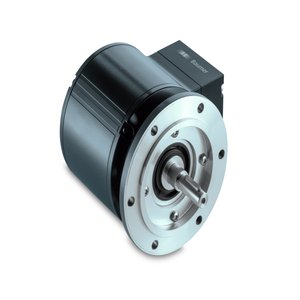

PMG10 - CANopen®: Baumer Solid Shaft ø11 mm with EURO Flange B10 Encoder
Technical Specifications of Baumer Solid Shaft ø11 mm with EURO Flange B10 Encoder PMG10 - CANopen®:
| Spec | Value |
|---|---|
| Voltage Supply | 10...30 VDC |
| Sensing Method | Magnetic |
| Switching Outputs | 1 output (Open collector, solid state relay on request) |
| Connection | Bus connecting box, Terminal box incremental |
Baumer Solid Shaft ø11 mm with EURO Flange B10 Encoder PMG10 - CANopen® Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤200 mA |
| Initializing time | ≤500 ms after power on |
| Interface | CANopen® |
| Function | Multiturn |
| Transmission rate | 10 … 1000 kBaud |
| Device adress | Rotary switches in bus connecting box |
| Steps per revolution | 8192 / 13 bit |
| Number of revolutions | 65536 / 16 bit |
| Additional outputs | Square-wave TTL/HTL,TTL/RS422 |
| Sensing method | Magnetic |
| Programmable parameters | Steps per revolution, Number of revolutions, Preset, scaling, rotating direction |
| Diagnostic function | Position or parameter error |
| Status indicator | DUO-LED (bus connecting box) 4 LEDs in device back side |
| Switching accuracy | ± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector, solid state relay on request) |
| Output switching capacity | 30 VDC; ≤100 mA |
| Switching delay time | ≤20 ms |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Flange | EURO flange B10, Housing foot B3 |
| Protection EN 60529 | IP 66 / IP 67 |
| Operating speed | ≤6000 rpm |
| Range of switching speed | ns (off) = ±2...6000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 1 kgcm² |
| Admitted shaft load | ≤450 N axial, ≤650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 400 g, 1 ms |
| Weight approx. | 2.7 kg (depending on version) |
| Connection | Bus connecting box, Terminal box incremental |
| Pulses per revolution |
Ask for the Pricing of Baumer Solid Shaft ø11 mm with EURO Flange B10 Encoder PMG10 - CANopen® at unbeatable prices. Detailed Specifications of PMG10 - CANopen®, feature voltage supply of 10...30 VDC and consumption of ≤200 mA without load. These encoders feature a fast initializing time of ≤500 ms after power on, ensuring quick setup. The Magnetic sensing method guarantees precise performance, with 1 output (Open collector, solid state relay on request). The output switching capacity is 30 VDC; ≤100 mA. The operating speed reaches up to ≤6000 rpm, with a switching speed range of ns (off) = ±2...6000 rpm. The Housing: aluminium alloy, Shaft: stainless steel shaft for added strength. Connections include a Bus connecting box, Terminal box incremental outputs. Now's the Time to Secure a Quote for your requirement of Baumer Solid Shaft ø11 mm with EURO Flange B10 Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
