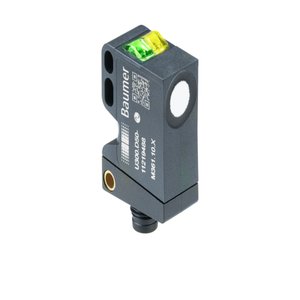

U300.P50-GP2J.72N: 11219504 - Baumer Ultrasonic 2 Point Proximity Switch
Technical Specifications of Baumer Ultrasonic 2 Point Proximity Switch U300.P50-GP2J.72N 11219504:
| Spec | Value |
|---|---|
| Scanning range Sd | 15 … 500 mm |
| Scanning range far limit Sde | 15 … 500 mm |
| Output circuit | Push-pull |
| Connection types | Connector M8 4 pin |
Baumer Ultrasonic 2 Point Proximity Switch U300.P50-GP2J.72N, 11219504 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 15 … 500 mm |
| Scanning range far limit Sde | 15 … 500 mm |
| Version | IO-Link dual channel, Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton/toff min | < 16 ms |
| Response time ton/toff standard | < 40 ms |
| Sonic frequency | 290 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 38.4 kBaud (COM 2) |
| Cycle time | ≥ 8 ms |
| Process data length | 48 Bit |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 12.9 mm |
| Height / length | 32.2 mm |
| Depth | 23 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 67 |
| Output indicator | Yellow LED / red LED |
Ask for the Pricing of Baumer Ultrasonic 2 Point Proximity Switch U300.P50-GP2J.72N part no: 11219504 at unbeatable prices. Detailed Specifications of U300.P50-GP2J.72N, 11219504 feature scanning range of 15 … 500 mm. This IO-Link dual channel, Multiplex version sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 290 kHz. It features qTeach, line-Teach, IO-Link, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a Push-pull output circuit, supporting an output current of up to 100 mA. Designed in compact Rectangular housing, it measures 12.9 mm in width and 32.2 mm in height, making it suitable for various industrial applications. The housing is made from durable Plastic (ASA, PMMA), ensuring longevity in demanding environments. The sensor connects via an Connector M8 4 pin, offering easy integration into your system. Now's the Time to Secure a Quote for your requirement of Baumer Ultrasonic 2 Point Proximity Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
