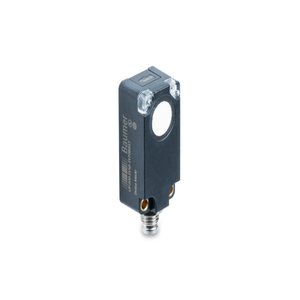

UF200.EB0-GP2J.72N: 11708349 - Baumer Ultrasonic Receiver Sensor
Technical Specifications of Baumer Ultrasonic Receiver Sensor UF200.EB0-GP2J.72N 11708349:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 2000 mm |
| Output circuit | Push-pull |
| Connection types | Connector M8 4 pin |
Baumer Ultrasonic Receiver Sensor UF200.EB0-GP2J.72N, 11708349 Technical Specifications:
| Specification | Value |
|---|---|
| Emitter / receiver | Receiver |
| Scanning range Sd | 0 … 2000 mm |
| Version | IO-Link |
| Object size (at Sd = 50 mm) | > 4 cm² |
| Hysteresis typ. | 5 % Sde |
| Temperature drift | < 2 % Sde |
| Response time ton | < 9 ms |
| Release time toff | < 9 ms |
| Adjustment | qTeach, line-Teach, IO-Link |
| Sonic frequency | 220 kHz |
| Alignment aid | Light indicator flashing |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
Get A Quote for Baumer Ultrasonic Receiver Sensor UF200.EB0-GP2J.72N part no: 11708349 at the best price. Here are the brief Technical Specifications of UF200.EB0-GP2J.72N, 11708349 are Receiver configuration with a scanning range of 0 … 2000 mm and sonic frequency of 220 kHz. The power-on indication is provided by a LED green, and the voltage supply range is between 12 … 30 VDC. Designed with a Rectangular form factor, the housing is made of durable Plastic (ASA, PMMA) for reliable operation in various environments. The sensor has a width of 20.5 mm and a height of 41 mm with a connection facilitated through an Connector M8 4 pin. It operates efficiently in temperatures ranging from -25 … +65 °C, making it suitable for demanding industrial applications. It's Time to get a Quote for your requirement of Baumer Ultrasonic Receiver Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
