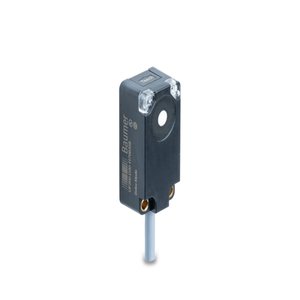

UF200.P25-GP1J.72CU: 11708360 - Baumer Rectangular Design Sensor
Technical Specifications of Baumer Rectangular Design Sensor UF200.P25-GP1J.72CU 11708360:
| Spec | Value |
|---|---|
| Scanning range Sd | 10 … 250 mm |
| Scanning range far limit Sde | 10 … 250 mm |
| Output circuit | Push-pull |
| Connection types | Cable 4 pin, 2 m |
Baumer Rectangular Design Sensor UF200.P25-GP1J.72CU, 11708360 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 10 … 250 mm |
| Scanning range far limit Sde | 10 … 250 mm |
| Version | IO-Link, Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % of distance to target Sde |
| Power-up drift | |
| Response time ton/toff min | < 10 ms |
| Response time ton/toff standard | < 25 ms |
| Sonic frequency | 370 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 12 mA |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | ≥ 5 ms |
| Process data length | 48 Bit |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Output indicator |
Call us for Baumer Rectangular Design Sensor UF200.P25-GP1J.72CU part no: 11708360 at the best rates. Technical Attributes of UF200.P25-GP1J.72CU, 11708360 are scanning range of 10 … 250 mm. This IO-Link, Multiplex version sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 370 kHz. It features qTeach, line-Teach, IO-Link, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a Push-pull output circuit, supporting an output current of up to <100 mA. Designed in compact Rectangular housing, it measures 20.5 mm in width and 41 mm in height, making it suitable for various industrial applications. The housing is made from durable Plastic (ASA, PMMA), ensuring longevity in demanding environments. The sensor connects via an Cable 4 pin, 2 m, offering easy integration into your system. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Rectangular Design Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
