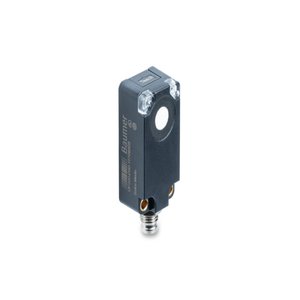

UF200.P50-GP1J.72N: 11708327 - Baumer Rectangular Ultrasonic Sensor
Technical Specifications of Baumer Rectangular Ultrasonic Sensor UF200.P50-GP1J.72N 11708327:
| Spec | Value |
|---|---|
| Scanning range Sd | 15 … 500 mm |
| Scanning range far limit Sde | 15 … 500 mm |
| Output circuit | Push-pull |
| Connection types | Connector M8 4 pin |
Baumer Rectangular Ultrasonic Sensor UF200.P50-GP1J.72N, 11708327 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 15 … 500 mm |
| Scanning range far limit Sde | 15 … 500 mm |
| Version | IO-Link, Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % of distance to target Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton/toff min | < 16 ms |
| Response time ton/toff standard | < 40 ms |
| Sonic frequency | 290 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 12 mA |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | ≥ 8 ms |
| Process data length | 48 Bit |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
Get A Quote for Baumer Rectangular Ultrasonic Sensor UF200.P50-GP1J.72N part no: 11708327 at the best price. Here are the brief Technical Specifications of UF200.P50-GP1J.72N, 11708327 are scanning range of 15 … 500 mm. This IO-Link, Multiplex version sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 290 kHz. It features qTeach, line-Teach, IO-Link, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a Push-pull output circuit, supporting an output current of up to <100 mA. Designed in compact Rectangular housing, it measures 20.5 mm in width and 41 mm in height, making it suitable for various industrial applications. The housing is made from durable Plastic (ASA, PMMA), ensuring longevity in demanding environments. The sensor connects via an Connector M8 4 pin, offering easy integration into your system. It's Time to get a Quote for your requirement of Baumer Rectangular Ultrasonic Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
