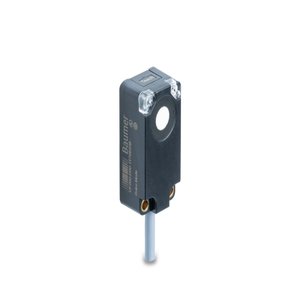

Baumer 500mm Reflector Position Sensor UF200.R50-GP1J.72CU, 11708336 Technical Specifications:
Specification
Value
Scanning range Sd
0 … 500 mm
Reflector position Sde
15 … 500 mm
Adjusting range reflector (operating range)
± 2,5 % Sde
Adjusting range reflector (limit range)
± 5 % Sde
Version
IO-Link
Repeat accuracy
0.5 mm
Response time ton/toff min
< 16 ms
Response time ton/toff standard
< 40 ms
Temperature drift
< 2 % of distance to target Sde
Sonic frequency
290 kHz
Adjustment
qTeach, line-Teach, IO-Link
Alignment aid
Light indicator flashing
Light indicator
LED yellow
Power on indication
LED green
Alignment measuring axis
< 2°
Voltage supply range +Vs
12 … 30 VDC
Current consumption typ.
12 mA
Output circuit
Push-pull
Output current
<100 mA
Voltage drop Vd
<3 VDC
Residual ripple
< 10 % Vs
Design
Rectangular
Housing material
Plastic (ASA, PMMA)
Width / diameter
20.5 mm
Height / length
41 mm
Depth
15 mm
Connection types
Cable 4 pin, 2 m
Operating temperature
-25 … +65 °C
Storage temperature
-25 … +75 °C
Protection class
IP 67
Mail Us for your needs in Baumer 500mm Reflector Position Sensor UF200.R50-GP1J.72CU part no: 11708336 with budget-friendly prices. The Main Technical Parameters of UF200.R50-GP1J.72CU, 11708336 inludce scanning range of 0 … 500 mm and sonic frequency of 290 kHz, featuring adjustable settings via qTeach, line-Teach, IO-Link. The sensor is equipped with a LED yellow light indicator and LED green for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of 12 mA. It operates with a Push-pull output circuit and supports up to <100 mA output current, with a voltage drop (Vd) of less than <3 VDC. The Rectangular housing is made of durable Plastic (ASA, PMMA), with dimensions of 20.5 mm in width and 41 mm in height, and an Cable 4 pin, 2 m. Customize Your Experience with a Quote for your requirement of Baumer 500mm Reflector Position Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
