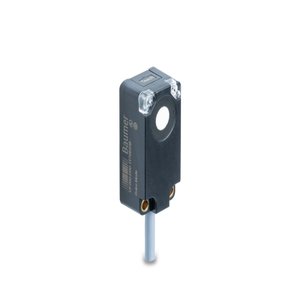

UF200.TA0-ZZZX.72N: 11708331 - Baumer M8 4 Pin Connector Sensor
Technical Specifications of Baumer M8 4 Pin Connector Sensor UF200.TA0-ZZZX.72N 11708331:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 1000 mm |
| Connection types | Connector M8 4 pin |
Baumer M8 4 Pin Connector Sensor UF200.TA0-ZZZX.72N, 11708331 Technical Specifications:
| Specification | Value |
|---|---|
| Emitter / receiver | Emitter |
| Scanning range Sd | 0 … 1000 mm |
| Sonic frequency | 310 kHz |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
Call us for Baumer M8 4 Pin Connector Sensor UF200.TA0-ZZZX.72N part no: 11708331 at the best rates. Technical Attributes of UF200.TA0-ZZZX.72N, 11708331 are Emitter configuration with a scanning range of 0 … 1000 mm and sonic frequency of 310 kHz. The power-on indication is provided by a LED green, and the voltage supply range is between 12 … 30 VDC. Designed with a Rectangular form factor, the housing is made of durable Plastic (ASA, PMMA) for reliable operation in various environments. The sensor has a width of 20.5 mm and a height of 41 mm with a connection facilitated through an Connector M8 4 pin. It operates efficiently in temperatures ranging from -25 … +65 °C, making it suitable for demanding industrial applications. Unlock Exclusive Pricing with a Quote for your requirement of Baumer M8 4 Pin Connector Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
