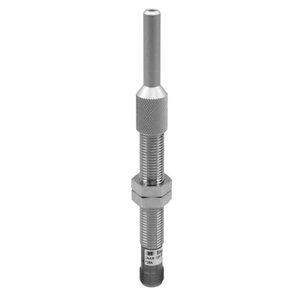

UNAM 12N1914/S14D: 10158649 - Baumer Ultrasonic Sensor With NPN Output
Technical Specifications of Baumer Ultrasonic Sensor With NPN Output UNAM 12N1914/S14D 10158649:
| Spec | Value |
|---|---|
| Scanning range Sd | 5 … 70 mm |
| Scanning range far limit Sde | 5 … 70 mm |
| Output circuit | NPN make function (NO) |
| Connection types | Connector M12 |
Baumer Ultrasonic Sensor With NPN Output UNAM 12N1914/S14D, 10158649 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 5 … 70 mm |
| Scanning range far limit Sde | 5 … 70 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 380 kHz |
| Adjustment | External Teach-in |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 12 mm |
| Height / length | 100 mm |
| Depth | |
| Connection types | Connector M12 |
| Operating temperature | 0 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Talk to Our Engineer for Baumer Ultrasonic Sensor With NPN Output UNAM 12N1914/S14D part no: 10158649 with exclusive offers. Core System Specifications of UNAM 12N1914/S14D, 10158649 are scanning range of 5 … 70 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 380 kHz. It features External Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 12 mm in width and 100 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Don't Miss Out on a Quote for your requirement of Baumer Ultrasonic Sensor With NPN Output. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
