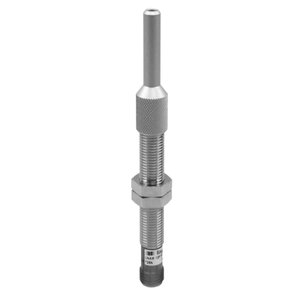

UNAM 12P1914/S14D: 10145833 - Baumer Ultrasonic Sensor With PNP
Technical Specifications of Baumer Ultrasonic Sensor With PNP UNAM 12P1914/S14D 10145833:
| Spec | Value |
|---|---|
| Scanning range Sd | 5 … 70 mm |
| Scanning range far limit Sde | 5 … 70 mm |
| Output circuit | PNP make function (NO) |
| Connection types | Connector M12 |
Baumer Ultrasonic Sensor With PNP UNAM 12P1914/S14D, 10145833 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 5 … 70 mm |
| Scanning range far limit Sde | 5 … 70 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 380 kHz |
| Adjustment | External Teach-in |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | PNP make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 12 mm |
| Height / length | 100 mm |
| Connection types | Connector M12 |
| Operating temperature | 0 … +60 °C |
| Protection class | IP 67 |
| Output indicator | LED green |
Talk to Our Engineer for Baumer Ultrasonic Sensor With PNP UNAM 12P1914/S14D part no: 10145833 with exclusive offers. Core System Specifications of UNAM 12P1914/S14D, 10145833 are scanning range of 5 … 70 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 380 kHz. It features External Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 12 mm in width and 100 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Don't Miss Out on a Quote for your requirement of Baumer Ultrasonic Sensor With PNP. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
