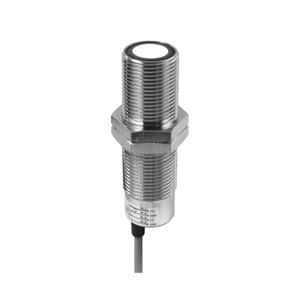

UNAM 50N1721: 10130405 - Baumer Cylindrical Ultrasonic Proximity Sensor
Technical Specifications of Baumer Cylindrical Ultrasonic Proximity Sensor UNAM 50N1721 10130405:
| Spec | Value |
|---|---|
| Scanning range Sd | 350 … 2500 mm |
| Scanning range far limit Sde | 350 … 2500 mm |
| Output circuit | NPN make function (NO) |
| Connection types | Cable, L=2 m |
Baumer Cylindrical Ultrasonic Proximity Sensor UNAM 50N1721, 10130405 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 350 … 2500 mm |
| Scanning range far limit Sde | 350 … 2500 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 120 kHz |
| Adjustment | Potentiometer |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Depth | |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Ask for the Pricing of Baumer Cylindrical Ultrasonic Proximity Sensor UNAM 50N1721 part no: 10130405 at unbeatable prices. Detailed Specifications of UNAM 50N1721, 10130405 feature scanning range of 350 … 2500 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 120 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 30 mm in width and 95 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Cable, L=2 m, offering easy integration into your system. Now's the Time to Secure a Quote for your requirement of Baumer Cylindrical Ultrasonic Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
