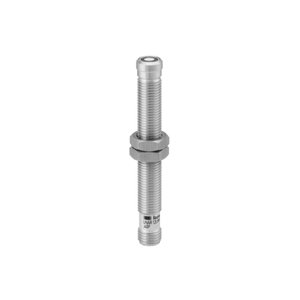

UNAR 12N1914/S14H: 11182657 - Baumer M12 Connector Ultrasonic Sensor
Technical Specifications of Baumer M12 Connector Ultrasonic Sensor UNAR 12N1914/S14H 11182657:
| Spec | Value |
|---|---|
| Scanning range Sd | 10 … 200 mm |
| Scanning range far limit Sde | 30 … 200 mm |
| Output circuit | NPN make function (NO) |
| Connection types | Connector M12 |
Baumer M12 Connector Ultrasonic Sensor UNAR 12N1914/S14H, 11182657 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 10 … 200 mm |
| Scanning range far limit Sde | 30 … 200 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 380 kHz |
| Adjustment | External Teach-in |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Cylindrical threaded |
| Housing material | Stainless steel 1.4404 (V4A) |
| Width / diameter | 12 mm |
| Height / length | 70 mm |
| Depth | |
| Connection types | Connector M12 |
| Operating temperature | 0 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator |
Get A Quote for Baumer M12 Connector Ultrasonic Sensor UNAR 12N1914/S14H part no: 11182657 at the best price. Here are the brief Technical Specifications of UNAR 12N1914/S14H, 11182657 are scanning range of 10 … 200 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 380 kHz. It features External Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 12 mm in width and 70 mm in height, making it suitable for various industrial applications. The housing is made from durable Stainless steel 1.4404 (V4A), ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. It's Time to get a Quote for your requirement of Baumer M12 Connector Ultrasonic Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
