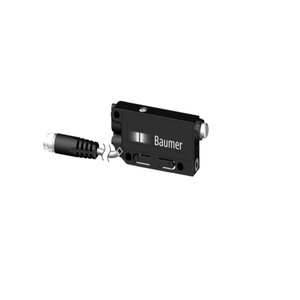

UNCK 09G8914/KS35A: 11011509 - Baumer Flylead Connector Ultrasonic Sensor
Technical Specifications of Baumer Flylead Connector Ultrasonic Sensor UNCK 09G8914/KS35A 11011509:
| Spec | Value |
|---|---|
| Scanning range Sd | 30 … 200 mm |
| Scanning range far limit Sde | 30 … 200 mm |
| Output circuit | Push-pull |
| Connection types | Flylead connector M8, L=200 mm |
Baumer Flylead Connector Ultrasonic Sensor UNCK 09G8914/KS35A, 11011509 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 30 … 200 mm |
| Scanning range far limit Sde | 30 … 200 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Rectangular |
| Housing material | PA 12 |
| Width / diameter | 8.6 mm |
| Height / length | 55 mm |
| Depth | 24.5 mm |
| Connection types | Flylead connector M8, L=200 mm |
| Operating temperature | 0 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | Green LED / red LED |
Give Us a Call for Baumer Flylead Connector Ultrasonic Sensor UNCK 09G8914/KS35A part no: 11011509 at the lowest pricing. In-depth Technical Analysis of UNCK 09G8914/KS35A, 11011509 feature scanning range of 30 … 200 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 380 kHz. It features Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a Push-pull output circuit, supporting an output current of up to 100 mA. Designed in compact Rectangular housing, it measures 8.6 mm in width and 55 mm in height, making it suitable for various industrial applications. The housing is made from durable PA 12, ensuring longevity in demanding environments. The sensor connects via an Flylead connector M8, L=200 mm, offering easy integration into your system. Elevate Your Project with a Quote for your requirement of Baumer Flylead Connector Ultrasonic Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
