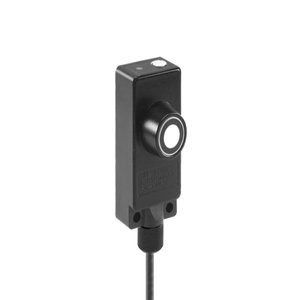

UNDK 30N3712: 10233661 - Baumer 400 kHz Frequency Ultrasonic Sensor
Technical Specifications of Baumer 400 kHz Frequency Ultrasonic Sensor UNDK 30N3712 10233661:
| Spec | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Output circuit | NPN break function (NC) |
| Connection types | Cable, L=2 m |
Baumer 400 kHz Frequency Ultrasonic Sensor UNDK 30N3712, 10233661 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 400 kHz |
| Adjustment | Potentiometer |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | NPN break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 … +60 °C |
| Protection class | IP 67 |
| Output indicator | LED green |
Talk to Our Engineer for Baumer 400 kHz Frequency Ultrasonic Sensor UNDK 30N3712 part no: 10233661 with exclusive offers. Core System Specifications of UNDK 30N3712, 10233661 are scanning range of 60 … 400 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 400 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a NPN break function (NC) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Cable, L=2 m, offering easy integration into your system. Don't Miss Out on a Quote for your requirement of Baumer 400 kHz Frequency Ultrasonic Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
