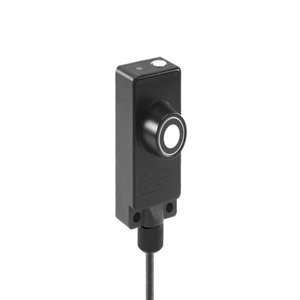

UNDK 30P1712: 10232173 - Baumer Polyester Material Ultrasonic Sensor
Technical Specifications of Baumer Polyester Material Ultrasonic Sensor UNDK 30P1712 10232173:
| Spec | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Output circuit | PNP make function (NO) |
| Connection types | Cable, L=2 m |
Baumer Polyester Material Ultrasonic Sensor UNDK 30P1712, 10232173 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 400 kHz |
| Adjustment | Potentiometer |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | PNP make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Obtain a Quote for Baumer Polyester Material Ultrasonic Sensor UNDK 30P1712 part no: 10232173 at economical prices. Specifications Overview for UNDK 30P1712, 10232173 reveals scanning range of 60 … 400 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 400 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Cable, L=2 m, offering easy integration into your system. Take the First Step with a Quote for your requirement of Baumer Polyester Material Ultrasonic Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
