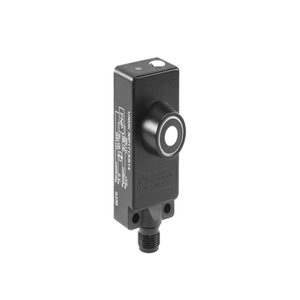

UNDK 30P1713/S14: 10118626 - Baumer Polyester / Die-cast Zinc Sensor
Technical Specifications of Baumer Polyester / Die-cast Zinc Sensor UNDK 30P1713/S14 10118626:
| Spec | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Output circuit | PNP make function (NO) |
| Connection types | Connector M12 |
Baumer Polyester / Die-cast Zinc Sensor UNDK 30P1713/S14, 10118626 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 300 kHz |
| Adjustment | Potentiometer |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | PNP make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Give Us a Call for Baumer Polyester / Die-cast Zinc Sensor UNDK 30P1713/S14 part no: 10118626 at the lowest pricing. In-depth Technical Analysis of UNDK 30P1713/S14, 10118626 feature scanning range of 30 … 250 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 300 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Elevate Your Project with a Quote for your requirement of Baumer Polyester / Die-cast Zinc Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
