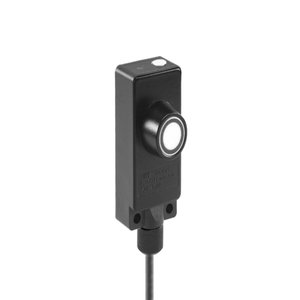

UNDK 30P3712: 10233662 - Baumer Sensor With PNP Break Function
Technical Specifications of Baumer Sensor With PNP Break Function UNDK 30P3712 10233662:
| Spec | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Output circuit | PNP break function (NC) |
| Connection types | Cable, L=2 m |
Baumer Sensor With PNP Break Function UNDK 30P3712, 10233662 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 60 … 400 mm |
| Scanning range far limit Sde | 60 … 400 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 400 kHz |
| Adjustment | Potentiometer |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | PNP break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Ask for the Pricing of Baumer Sensor With PNP Break Function UNDK 30P3712 part no: 10233662 at unbeatable prices. Detailed Specifications of UNDK 30P3712, 10233662 feature scanning range of 60 … 400 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 400 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP break function (NC) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Cable, L=2 m, offering easy integration into your system. Now's the Time to Secure a Quote for your requirement of Baumer Sensor With PNP Break Function. We're committed to offering more favorable pricing and more responsive support than other Traders.
