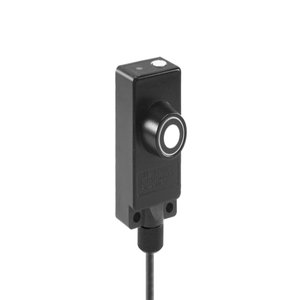

UNDK 30P3713/S14: 10123379 - Baumer PNP Function Ultrasonic Sensor
Technical Specifications of Baumer PNP Function Ultrasonic Sensor UNDK 30P3713/S14 10123379:
| Spec | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Output circuit | PNP break function (NC) |
| Connection types | Connector M12 |
Baumer PNP Function Ultrasonic Sensor UNDK 30P3713/S14, 10123379 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Version | |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Power-up drift | |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 300 kHz |
| Adjustment | Potentiometer |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | PNP break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | |
| Baud rate | |
| Cycle time | |
| Process data length | |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
| Output indicator | LED green |
Obtain a Quote for Baumer PNP Function Ultrasonic Sensor UNDK 30P3713/S14 part no: 10123379 at economical prices. Specifications Overview for UNDK 30P3713/S14, 10123379 reveals scanning range of 30 … 250 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 300 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP break function (NC) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Take the First Step with a Quote for your requirement of Baumer PNP Function Ultrasonic Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
