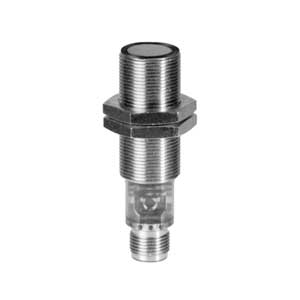

UR18.DA0.2-IAMJ.9SF: 11200640 - Baumer Ultrasonic Distance Measuring Sensors
Technical Specifications of Baumer Ultrasonic Distance Measuring Sensors UR18.DA0.2-IAMJ.9SF 11200640:
| Spec | Value |
|---|---|
| Scanning range Sd | 20 … 1000 mm |
| Output circuit | Current output |
| Design | Cylindrical threaded |
| Connection Types | Connector M12 5 pin |
Baumer Ultrasonic Distance Measuring Sensors UR18.DA0.2-IAMJ.9SF, 11200640 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 20 … 1000 mm |
| Version | IO-Link dual channel Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Response time ton | < 40 ms |
| Release time toff | < 40 ms |
| Sonic frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | Current output |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| Baud rate | 38.4 kBaud (COM 2) |
| Cycle time | ≥ 12 ms |
| Process data length | 48 Bit |
| IO-Link port type | Class A |
| IO-Link | - |
| Design | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Depth | - |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Protection class | IP 67 |
Ask for the Pricing of Baumer Ultrasonic Distance Measuring Sensor UR18.DA0.2-IAMJ.9SF part no: 11200640 at unbeatable prices. Detailed Specifications of UR18.DA0.2-IAMJ.9SF, 11200640 feature sensor operates over a range of 20 to 1000 mm with an accuracy of 0.5 mm and a resolution of 4% Sde. It features dual channel IO-Link V1.1 communication at 38.4 kBaud (COM 2) and supports qTeach, line-Teach, and IO-Link configurations. The sensor operates on a 12-30 VDC power supply, providing a current output with a maximum load of 100 mA. It has a fast response time of less than 40 ms and an ultrasonic frequency of 200 kHz, with a beam angle of less than 2°. Housed in a robust cylindrical threaded body made of stainless steel (V2A) and TR90, the sensor has dimensions of 18 mm x 64 mm. It is equipped with an M12 5-pin connector and is rated IP67, ensuring durability in harsh environments. It functions reliably in temperatures from -25 to +65°C. Now's the Time to Secure a Quote for your requirement of Baumer Ultrasonic Distance Measuring Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders
