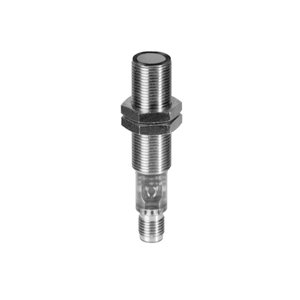

UR18.EB0.2-GP2J.9SF: 11228073 - Baumer M12 Connection Ultrasonic Sensor
Technical Specifications of Baumer M12 Connection Ultrasonic Sensor UR18.EB0.2-GP2J.9SF 11228073:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 2000 mm |
| Scanning range far limit Sde | 0 … 2000 mm |
| Output circuit | Push-pull |
| Connection types | Connector M12 5 pin |
Baumer M12 Connection Ultrasonic Sensor UR18.EB0.2-GP2J.9SF, 11228073 Technical Specifications:
| Specification | Value |
|---|---|
| Emitter / receiver | Receiver |
| Scanning range Sd | 0 … 2000 mm |
| Scanning range far limit Sde | 0 … 2000 mm |
| Version | IO-Link |
| Object size (at Sd = 50 mm) | > 4 cm² |
| Hysteresis typ. | 5 % Sde |
| Repeat accuracy | 3 mm |
| Temperature drift | < 2 % Sde |
| Response time ton | < 9 ms |
| Release time toff | < 9 ms |
| Adjustment | qTeach, line-Teach, IO-Link |
| Sonic frequency | 200 kHz |
| Alignment aid | Target indication flashing |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <3.5 VDC |
| Residual ripple | < 10 % Vs |
| Design | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 69 |
Talk to Our Engineer for Baumer M12 Connection Ultrasonic Sensor UR18.EB0.2-GP2J.9SF part no: 11228073 with exclusive offers. Core System Specifications of UR18.EB0.2-GP2J.9SF, 11228073 are Receiver configuration with a scanning range of 0 … 2000 mm and sonic frequency of 200 kHz. The power-on indication is provided by a LED green, and the voltage supply range is between 12 … 30 VDC. Designed with a Cylindrical threaded form factor, the housing is made of durable Stainless steel (V2A) / TR90 for reliable operation in various environments. The sensor has a width of 18 mm and a height of 64 mm with a connection facilitated through an Connector M12 5 pin. It operates efficiently in temperatures ranging from -25 … +65 °C, making it suitable for demanding industrial applications. Don't Miss Out on a Quote for your requirement of Baumer M12 Connection Ultrasonic Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
