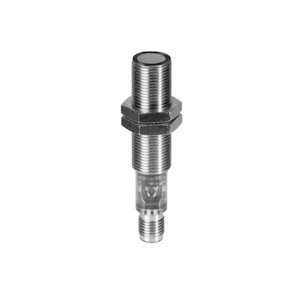

UR18.PA0.2-GP2J.9SF: 11200645 - Baumer Ultrasonic Sensor With M12 Connector
Technical Specifications of Baumer Ultrasonic Sensor With M12 Connector UR18.PA0.2-GP2J.9SF 11200645:
| Spec | Value |
|---|---|
| Scanning range Sd | 20 … 1000 mm |
| Scanning range far limit Sde | 20 … 1000 mm |
| Output circuit | Push-pull |
| Connection types | Connector M12 5 pin |
Baumer Ultrasonic Sensor With M12 Connector UR18.PA0.2-GP2J.9SF, 11200645 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 20 … 1000 mm |
| Scanning range far limit Sde | 20 … 1000 mm |
| Version | IO-Link dual channel, Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Sonic frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <3.5 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 38.4 kBaud (COM 2) |
| Cycle time | ≥ 12 ms |
| Process data length | 48 Bit |
| Design | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Depth | |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 69 |
| Output indicator | Yellow LED / red LED |
Call us for Baumer Ultrasonic Sensor With M12 Connector UR18.PA0.2-GP2J.9SF part no: 11200645 at the best rates. Technical Attributes of UR18.PA0.2-GP2J.9SF, 11200645 are scanning range of 20 … 1000 mm. This IO-Link dual channel, Multiplex version sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 200 kHz. It features qTeach, line-Teach, IO-Link, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a Push-pull output circuit, supporting an output current of up to 100 mA. Designed in compact Cylindrical threaded housing, it measures 18 mm in width and 64 mm in height, making it suitable for various industrial applications. The housing is made from durable Stainless steel (V2A) / TR90, ensuring longevity in demanding environments. The sensor connects via an Connector M12 5 pin, offering easy integration into your system. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Ultrasonic Sensor With M12 Connector. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
