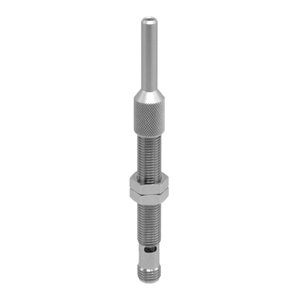

URAM 12N8910/S14OD: 11053887 - Baumer NPN NO/NC Retro-reflective Sensor
Technical Specifications of Baumer NPN NO/NC Retro-reflective Sensor URAM 12N8910/S14OD:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 40 mm |
| Reflector position Sde | 10 … 40 mm |
| Output circuit | NPN make function (NO) / break function (NC) |
| Connection types | Connector M12 |
Baumer NPN NO/NC Retro-reflective Sensor URAM 12N8910/S14OD, 11053887 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 0 … 40 mm |
| Reflector position Sde | 10 … 40 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Version | |
| Repeat accuracy | 1.5 mm |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 380 kHz |
| Adjustment | External Teach-in |
| Alignment aid | Target indication flashing |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | NPN make function (NO) / break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 12 mm |
| Height / length | 100 mm |
| Depth | |
| Connection types | Connector M12 |
| Operating temperature | -10 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
Get A Quote for Baumer NPN NO/NC Retro-reflective Sensor URAM 12N8910/S14OD part no: 11053887 at the best price. Here are the brief Technical Specifications of URAM 12N8910/S14OD, 11053887 are scanning range of 0 … 40 mm and sonic frequency of 380 kHz, featuring adjustable settings via External Teach-in. The sensor is equipped with a light indicator and for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of . It operates with a NPN make function (NO) / break function (NC) output circuit and supports up to 200 mA output current, with a voltage drop (Vd) of less than <2 VDC. The Cylindrical threaded housing is made of durable Brass nickel plated, with dimensions of 12 mm in width and 100 mm in height, and an Connector M12. It's Time to get a Quote for your requirement of Baumer NPN NO/NC Retro-reflective Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
