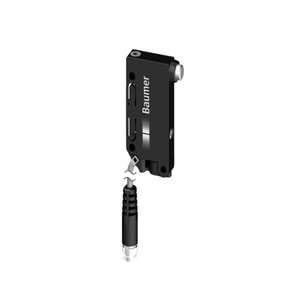

URDK 10N8914/KS35A: 10161458 - Baumer NPN Make Function Retro Sensor
Technical Specifications of Baumer NPN Make Function Retro Sensor URDK 10N8914/KS35A:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Output circuit | NPN make function (NO) / break function (NC) |
| Connection types | Flylead connector M8, L=200 mm |
Baumer NPN Make Function Retro Sensor URDK 10N8914/KS35A, 10161458 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Repeat accuracy | 1.5 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | NPN make function (NO) / break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA) |
| Width / diameter | 10.4 mm |
| Height / length | 27 mm |
| Depth | 14 mm |
| Connection types | Flylead connector M8, L=200 mm |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
Give Us a Call for Baumer NPN Make Function Retro Sensor URDK 10N8914/KS35A part no: 10161458 at the lowest pricing. In-depth Technical Analysis of URDK 10N8914/KS35A, 10161458 feature scanning range of 0 … 200 mm and sonic frequency of 380 kHz, featuring adjustable settings via Teach-in. The sensor is equipped with a light indicator and for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of . It operates with a NPN make function (NO) / break function (NC) output circuit and supports up to 200 mA output current, with a voltage drop (Vd) of less than <2 VDC. The Rectangular housing is made of durable Plastic (ASA), with dimensions of 10.4 mm in width and 27 mm in height, and an Flylead connector M8, L=200 mm. Elevate Your Project with a Quote for your requirement of Baumer NPN Make Function Retro Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
