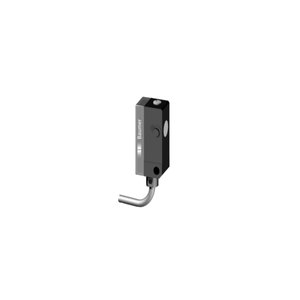

URDK 10P8914: 10161453 - Baumer Miniature Retro-reflective Sensor
Technical Specifications of Baumer Miniature Retro-reflective Sensor URDK 10P8914:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Output circuit | PNP make function (NO) / break function (NC) |
| Connection types | Cable, L=2 m |
Baumer Miniature Retro-reflective Sensor URDK 10P8914, 10161453 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Repeat accuracy | 1.5 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | PNP make function (NO) / break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA) |
| Width / diameter | 10.4 mm |
| Height / length | 27 mm |
| Depth | 14 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
Get A Quote for Baumer Miniature Retro-reflective Sensor URDK 10P8914 part no: 10161453 at the best price. Here are the brief Technical Specifications of URDK 10P8914, 10161453 are scanning range of 0 … 200 mm and sonic frequency of 380 kHz, featuring adjustable settings via Teach-in. The sensor is equipped with a light indicator and for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of . It operates with a PNP make function (NO) / break function (NC) output circuit and supports up to 200 mA output current, with a voltage drop (Vd) of less than <2 VDC. The Rectangular housing is made of durable Plastic (ASA), with dimensions of 10.4 mm in width and 27 mm in height, and an Cable, L=2 m. It's Time to get a Quote for your requirement of Baumer Miniature Retro-reflective Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
