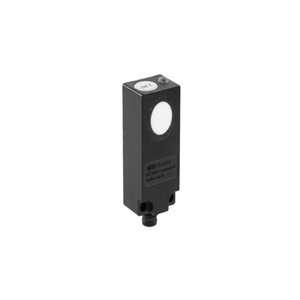

URDK 20N6903/S35A: 11013740 - Baumer Ultrasonic Sensor With Precision
Technical Specifications of Baumer Ultrasonic Sensor With Precision URDK 20N6903/S35A:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 1000 mm |
| Reflector position Sde | 200 … 1000 mm |
| Output circuit | NPN make function (NO) |
| Connection types | Connector M8 |
Baumer Ultrasonic Sensor With Precision URDK 20N6903/S35A, 11013740 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 0 … 1000 mm |
| Reflector position Sde | 200 … 1000 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Repeat accuracy | 1.5 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 240 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Polyester |
| Width / diameter | 20 mm |
| Height / length | 42 mm |
| Depth | 15 mm |
| Connection types | Connector M8 |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
Call us for Baumer Ultrasonic Sensor With Precision URDK 20N6903/S35A part no: 11013740 at the best rates. Technical Attributes of URDK 20N6903/S35A, 11013740 are scanning range of 0 … 1000 mm and sonic frequency of 240 kHz, featuring adjustable settings via Teach-in. The sensor is equipped with a light indicator and for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of . It operates with a NPN make function (NO) output circuit and supports up to 200 mA output current, with a voltage drop (Vd) of less than <2 VDC. The Rectangular housing is made of durable Polyester, with dimensions of 20 mm in width and 42 mm in height, and an Connector M8. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Ultrasonic Sensor With Precision. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
