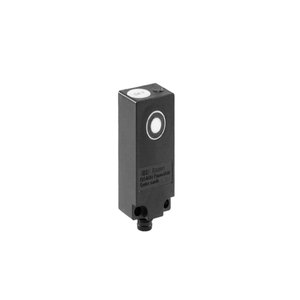

URDK 20N7914/S35A: 11013751 - Baumer Ultrasonic Retro Sensor
Technical Specifications of Baumer Ultrasonic Retro Sensor URDK 20N7914/S35A:
| Spec | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Output circuit | NPN break function (NC) |
| Connection types | Connector M8 |
Baumer Ultrasonic Retro Sensor URDK 20N7914/S35A, 11013751 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 0 … 200 mm |
| Reflector position Sde | 40 … 200 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Version | |
| Repeat accuracy | 1.5 mm |
| Response time ton/toff min | |
| Response time ton/toff standard | |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Light indicator | |
| Power on indication | |
| Alignment measuring axis | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | |
| Output circuit | NPN break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Polyester |
| Width / diameter | 20 mm |
| Height / length | 42 mm |
| Depth | 15 mm |
| Connection types | Connector M8 |
| Operating temperature | -10 … +60 °C |
| Storage temperature | |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Ultrasonic Retro Sensor URDK 20N7914/S35A part no: 11013751 at attractive prices. Technical Specs Summary of URDK 20N7914/S35A, 11013751 includes scanning range of 0 … 200 mm and sonic frequency of 380 kHz, featuring adjustable settings via Teach-in. The sensor is equipped with a light indicator and for power on indication. Voltage supply ranges from 12 … 30 VDC with a typical current consumption of . It operates with a NPN break function (NC) output circuit and supports up to 200 mA output current, with a voltage drop (Vd) of less than <2 VDC. The Rectangular housing is made of durable Polyester, with dimensions of 20 mm in width and 42 mm in height, and an Connector M8. Match Your Needs with a Quote for your requirement of Baumer Ultrasonic Retro Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
