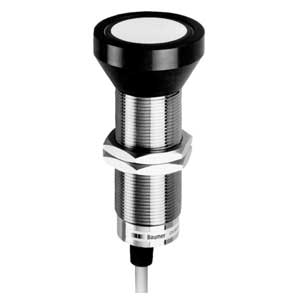

UZAM 50N6121: 10131013 - Baumer Ultrasonic Proximity Sensor
technical Specifications of Baumer Ultrasonic Proximity Sensor UZAM 50N6121:
| Spec | Value |
|---|---|
| Scanning Range SD | 350 … 2500 mm |
| Design | Cylindrical threaded |
| Output Circuit | NPN make function (NO) |
| Connection Types | Cable, L=2 m |
Baumer Ultrasonic Proximity Sensor UZAM 50N6121, 10131013 Technical Specifications:
| Specification | Value |
|---|---|
| Emitter / receiver | 2 point proximity switch |
| Scanning range Sd | 350 … 2500 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Response time ton | < 160 ms |
| Release time toff | < 160 ms |
| Sonic frequency | 120 kHz |
| Adjustment | Teach-in |
| Output indicator | Green / yellow LED |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Depth | - |
| Connection types | Cable, L=2 m |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
Send Your Inquiry for Baumer Ultrasonic Proximity Sensor 10131013 part no: 10 with cost-effective solutions. Essential Technical Specs of 10131013, 10 are sensor operates within a range of 350 … 2500 mm, and features a high resolution with 4 % Sde, repeatability and 1 mm, accuracy. It provides a fast response time of < 160 ms and operates on a 12 … 30 VDC power supply. The sensor includes a Teach-in for easy adjustments and a green LED for status indication. With NPN make function (NO) output, it can handle up to 200 mA. Housed in a durable Cylindrical threaded body made of Brass nickel plated, the sensor dimensions are 30 mm x 95 mm x -. It is equipped with an Cable, L=2 m and is rated IP 67, ensuring protection against dust and water. The operating temperature range is -10 … +60 °C. Capture the Best Deal with a Quote for your requirement of Baumer Ultrasonic Proximity Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
