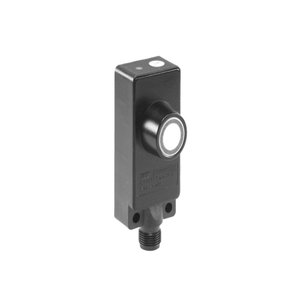

UZDK 30P6113/S14: 10126628 - Baumer Connector M12 Ultrasonic Sensor
Technical Specifications of Baumer Connector M12 Ultrasonic Sensor UZDK 30P6113/S14 10126628:
| Spec | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Output circuit | PNP make function (NO) |
| Connection types | Connector M12 |
Baumer Connector M12 Ultrasonic Sensor UZDK 30P6113/S14, 10126628 Technical Specifications:
| Specification | Value |
|---|---|
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Hysteresis typ. | 5 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 300 kHz |
| Adjustment | Teach-in |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | PNP make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Connector M12 |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
| Output indicator | Green / yellow LED |
Ask for the Pricing of Baumer Connector M12 Ultrasonic Sensor UZDK 30P6113/S14 part no: 10126628 at unbeatable prices. Detailed Specifications of UZDK 30P6113/S14, 10126628 feature scanning range of 30 … 250 mm. This sensor has a hysteresis of 5 % Sde and operates at a sonic frequency of 300 kHz. It features Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 … 30 VDC and uses a PNP make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 30 mm in width and 65 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester / die-cast zinc, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Now's the Time to Secure a Quote for your requirement of Baumer Connector M12 Ultrasonic Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
