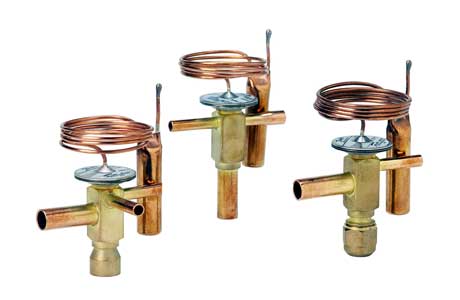

Danfoss Expansion Valve: Exv Valve:TD 1 thermostatic

The Danfoss website for Thermostatic Expansion Valves features detailed information about products like the TGE series, ideal for commercial air conditioning systems with capacities ranging from 3.5 to 52 TR. These valves are engineered to be hermetically sealed, ensuring compliance with environmental standards, and are constructed from durable, laser-welded stainless steel to handle a maximum pressure of 46 bar. They are also ATEX compliant, adding an extra layer of safety in hazardous environments. Connection options are versatile, including several mechanical types, tailored for different installation needs. This series highlights Danfoss’ commitment to providing robust and reliable solutions for air conditioning systems, emphasizing customization for system efficiency and environmental safety.

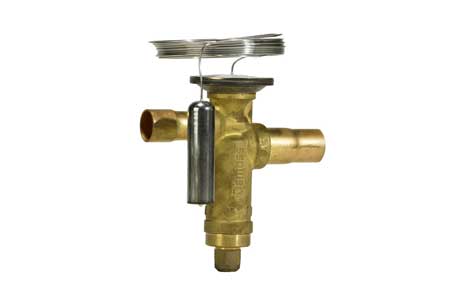

Danfoss Expansion Valve:TGE thermostatic

Designed for commercial air conditioning systems, accommodating 2.75 to 34.7 TR.
Customizable for specific system needs, enhancing system efficiency and compliance.
Hermetically sealed to meet stringent environmental standards.
Constructed with a durable, laser-welded stainless steel power element.
Features a double diaphragm and a leak-minimizing adjustment device.
Operates up to a maximum pressure of 46 bar (667 psig).
Available with various mechanical connection options for flexible installation.
Suitable for R410A with capacities ranging from 3.5 to 52 TR (12 to 182 kW).
ATEX compliant for safety in hazardous environments.

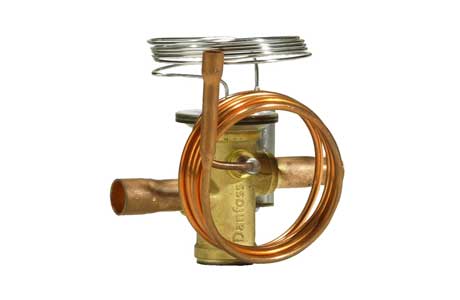

Danfoss Electronic Expansion Valve:TR 6 thermostatic

Application Fit: Ideal for ducted split air conditioning and light commercial air conditioning systems.
Hermetic Sealing: Meets environmental standards with a tight, durable seal.
Refrigerant Compatibility: Compatible with all fluorinated refrigerants.
Material Quality: Constructed from hot-pressed brass and stainless steel parts.
Design Variations: Available in straightway versions, with options for fixed orifice and external equalization.
Valve Options: Offered with or without an internal check valve; possible external superheat adjustment.
Balanced Port Design: Reduces the effects of fluctuating condensing pressures.
Compact and Efficient: Space-efficient design for easy installation.
Operational Range: Functions within temperatures of -10°C to +15°C.
Durability and Longevity: Laser-welded power element enhances durability and pressure resistance.

Danfoss Exv Valve:TD 1 thermostatic

Purpose: Controls liquid injection into small capacity evaporators for commercial refrigeration like merchandisers, air dryers, cold rooms, and trucks/trailers.
Design: Available in angleway and straightway versions for easier installation.
Variety: Includes different orifices and connection sizes with capacities from 0.42 to 3.88 kW (0.12 to 1.11 TR) for R134a.
Options: Can be supplied with or without external equalization and with or without Maximum Operating Pressure (MOP).
Benefits: Compact and lightweight, offering high energy efficiency.
Installation Flexibility: Angleway and straightway versions are available for varying setup requirements.

Danfoss’ thermostatic expansion valves are designed to meet the diverse needs of cooling applications using a variety of refrigerants. These valves are engineered to provide precise control of the injection of liquid refrigerant into evaporators, thereby ensuring the effective operation and protection of the compressor motor from liquid refrigerant. With options for both adjustable and non-adjustable superheat settings and high maximum operating pressure differential (MOPD) values, these valves offer flexibility for different installation requirements. They feature a compact design, can be equipped with an MOP charge to protect against excessive evaporating pressure, and are available in several connection options to facilitate installation across a wide range of refrigeration systems. The Danfoss range of thermostatic expansion valves emphasizes energy efficiency and reliability, maintaining constant superheat levels across varying load conditions.

Frequently Asked Questions

How does the expansion valve work?

An expansion valve regulates the flow of refrigerant into the evaporator. By reducing the pressure, it allows the refrigerant to expand and transition from liquid to vapor, facilitating efficient heat absorption and cooling in the evaporator. This process is essential for the air conditioning system’s heat exchange cycle.

What is the function of the Danfoss expansion valve?

The Danfoss T2/TE2 thermostatic expansion valves are designed for precise refrigerant injection control into evaporators, optimizing performance in food retail refrigeration systems. These valves adjust the flow based on cooling demand, ensuring efficient operation and temperature regulation, vital for maintaining optimal freshness and energy efficiency in refrigerated displays and storage.

What are the two main types of expansion valve?

The two main types of expansion valves are Thermostatic Expansion Valves (TXV) and Automatic Expansion Valves (AXV). TXVs, the most common type, adjust refrigerant flow based on changes in the evaporator’s temperature. AXVs maintain constant pressure in the evaporator, ensuring steady conditions for optimal cooling efficiency. Both types are crucial for managing refrigerant in air conditioning and refrigeration systems, optimizing performance and energy efficiency.
