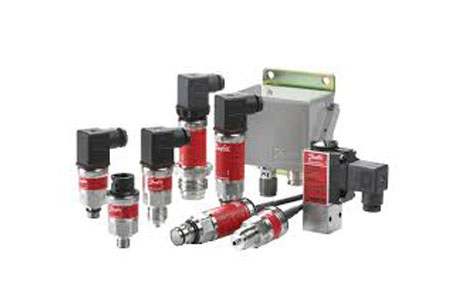

Danfoss Pressure Transmitter: MBS 3000 Pressure Transducer

At IndMALL Automation, we present the Danfoss Pressure Transmitter series. These transmitters are crafted to operate flawlessly under harsh conditions across various industrial applications. They feature a robust design with options like the MBS 3300, which supports measurements from 0 to 600 bar and withstands temperatures up to 125 °C. Each model offers either 4-20 mA or absolute voltage outputs, ensuring compatibility with diverse systems. The series includes specialized models like the MBS 3050 for hydraulic applications, showcasing exceptional resistance to severe medium influences.

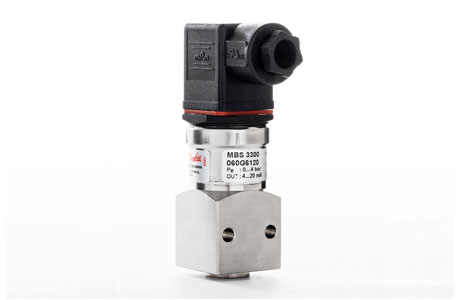

Danfoss Pressure Transmitter: MBS 3300

Pressure Range: From 0 to 600 bar, in absolute or gauge versions.
Special Features: Options with integrated pulse-snubbers for extra protection.
Robust Build: Excellent vibration resistance and durable construction.
Outputs: 4 – 20 mA standard.
Material: AISI 316L stainless steel for enclosures and wetted parts.
High-Temperature Performance: Operates up to 125 °C.

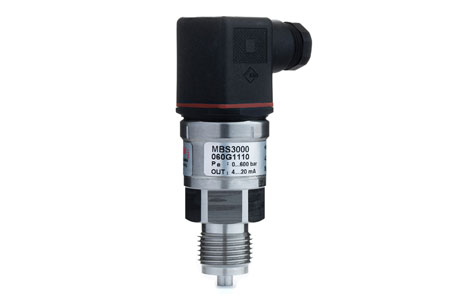

Danfoss MBS 3000 Pressure Transmitter

Purpose: Designed for general industrial use under harsh conditions.
Pressure Range: Measures from 0 to 600 bar.
Temperature Suitability: Operates between -40 to 85 °C.
Output Variants: Offers 4-20 mA or absolute voltage outputs.
Special Model: MBS 3050, ideal for hydraulic applications with severe medium influences.
Build: Robust, with excellent vibration stability and high EMC/EMI protection.

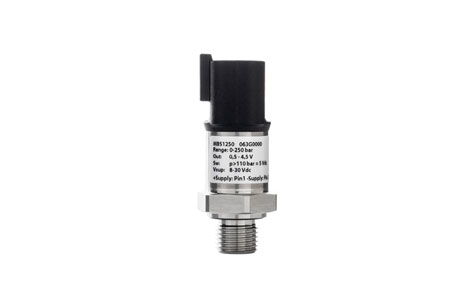

Danfoss Pressure Transducer: MBS 1200

Temperature Range: Operates efficiently up to 125°C.
Output Options: Includes 4 – 20 mA, 0 – 5 V, 1 – 5 V, 1 – 6 V, 0 – 10 V, and 10 – 90% ratiometric voltage.
Construction: Wetted parts are made of stainless steel for durability.
Integrated Pulse-Snubber: Available in MBS 1250 model for protection against cavitation and liquid hammer.
EMI Protection: Ensures functionality amidst high electromagnetic interference, up to 100 V/m.

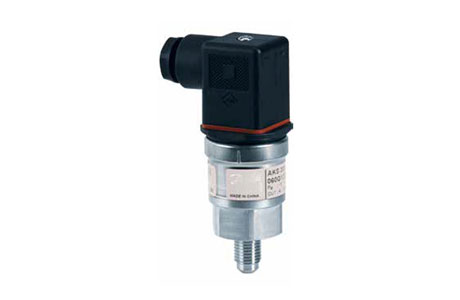

Danfoss AKS 3000 Pressure Transmitter

Purpose: Designed for air conditioning and refrigeration applications.
Technology: Uses piezo resistive measuring principle.
Accuracy: Features a sealed gauge to negate atmospheric pressure effects.
Material: All contact parts are AISI 316L stainless steel.
Output: Offers a 4 to 20 mA signal.
Durability: Resistant to harsh conditions like vibration and corrosive media.

Danfoss Pressure Transmitters, renowned for their robustness in mobile and stationary applications. These transmitters are increasingly integral to automated systems that rely on electronic controls for efficient operation. Danfoss leads the market with its extensive experience, responding dynamically to technological and functional demands. The product range showcases advanced transmitters that combine cutting-edge technology with high-quality materials, ensuring they meet various industrial requirements. Key features include high EMC performance, exceptional vibration and shock stability, and long-term durability. With options for different pressure connections, electrical connections, and certifications, Danfoss transmitters are versatile tools in industrial automation, designed to perform reliably in even the toughest environments.

Frequently Asked Questions

What is the pressure transmitter model MBS 3000?

The Danfoss MBS 3000 Compact Pressure Transmitter is tailored for all industrial applications. It ensures reliable pressure measurements up to 600 bar, even in harsh environmental conditions. Designed for versatility, it supports a wide range of pressure and electrical connections, making it ideal for diverse industrial uses.

What is the most common pressure transmitter?

The most common type of pressure transmitter is the piezoelectric transmitter. It converts physical pressure into an electrical signal, facilitating accurate pressure readings. Other prevalent types include capacitive, resistive, and optical transmitters, each tailored for specific applications and environments, enhancing versatility across various industries.

What is the purpose of a pressure transmitter?

A pressure transmitter’s purpose is to convert pressure into an electrical signal. This signal can then be used to measure liquid or gas pressure accurately. By providing precise pressure readings, pressure transmitters help in controlling and monitoring processes in various industries, ensuring safety, efficiency, and optimal operation of systems.
