Danfoss Solenoid Valve | Danfoss Electric Valve

IndMALL Automation offers an extensive range of Danfoss Solenoid Valves, designed for precision and reliability in industrial applications. These valves are suitable for various media including water, oil, compressed air, and more. The lineup includes models like the EV220B and EV210B, available in various connection types and sizes, from 1/4 inch to 1 inch. The valves are constructed from durable materials such as brass and stainless steel and are available in both Normally Closed (NC) and Normally Open (NO) configurations. With certifications from DNVGL-CG-0339, CE, UKCA, and others, these valves meet rigorous quality and safety standards. They provide flow capacities up to 18 m³/h and handle pressures up to 20 bar, making them versatile for a wide range of industrial settings.

Danfoss Solenoid Valve:EV260B

Diverse Valve Types: Includes models like EV220B, EV210B, EV220A, EV220W, and EV210A.
Various Media: Suitable for compressed air, oil, vacuum, steam, water, and brine.
Multiple Approvals: Includes certifications like DNVGL-CG-0339, CE, UKCA, PZH, and WRAS.
Connection Types and Sizes: Available with G, NPT, and flange connections, sizes ranging from 1/4 inch to 1 inch.
Material Options: Body materials include brass, cast iron, DZR brass, and stainless steel.
Seal Materials: Seals available in EPDM, FKM, NBR, and PTFE.
Functional Designs: Normally Closed (NC) and Normally Open (NO) configurations.
Flow Capacities: Kv values from 0.3 m³/h to 18 m³/h and Cv from 0.35 to 20.8 gal/min.

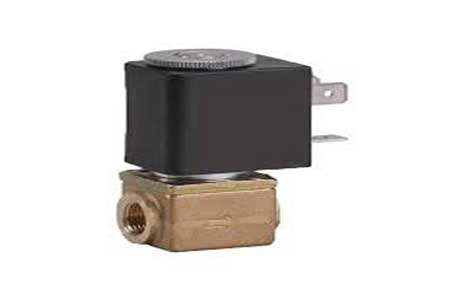

Danfoss Solenoid Coil:EV210A

Valve Types: Variants include EV220B, EV210B, EV220A, EV220W, and EV210A.
Media Compatibility: Suitable for compressed air, oil, vacuum, steam, water, and brine.
Certifications: Includes DNVGL-CG-0339, CE, UKCA, PZH, and WRAS approvals.
Connection Options: Types include G, NPT, and flange; sizes range from 1/4 inch to 1 inch.
Flow Capacities: Kv values up to 18 m³/h; Cv values up to 20.8 gal/min.
Materials: Body materials are brass, cast iron, DZR brass, and stainless steel; seals made from EPDM, FKM, NBR, and PTFE.
Functional Types: Available in Normally Closed (NC) and Normally Open (NO) configurations.

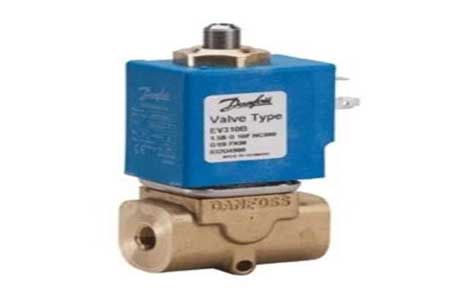

Danfoss Solenoid:EV310B

Valve Models: EV220B, EV210B, EV220A, EV220W, EV210A.
Media Compatibility: Handles compressed air, oil, vacuum, steam, and various types of water.
Certifications: DNVGL-CG-0339, CE, UKCA, PZH, WRAS.
Connection Types: G, NPT, and flange.
Flow Capacities: Kv values range from 0.3 m³/h to 18 m³/h; Cv values from 0.35 to 20.8 gal/min.
Materials: Brass, cast iron, DZR brass, stainless steel.
Seal Materials: EPDM, FKM, NBR, PTFE.
Valve Functions: Normally Closed (NC) and Normally Open (NO).

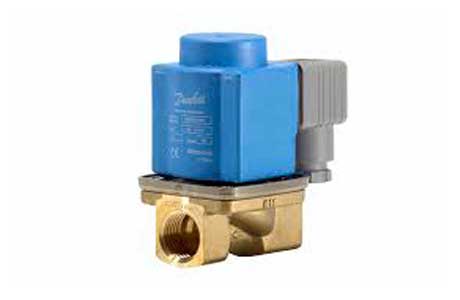

Danfoss 24v Solenoid Valve:EV220B

Flow and Pressure: Flow ranges from 0.2 to 400 m³/h; differential pressure up to 20 bar.
Temperature Range: Media temperatures from -30°C to 140°C.
Material Options: Brass, dezincification resistant brass, and stainless steel.
Features: Built-in pilot filters, adjustable closing times, IP67 enclosures.
Connection Types: Thread sizes from G 1/4″ to G 4″ and flange options.
Sizes: DN 6 to DN 100 for various flow requirements.
Seal Options: EPDM and NBR seals.
Valve Types: Available in Normally Closed (NC) and Normally Open (NO) configurations.

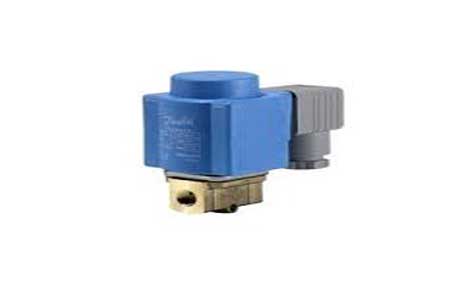

Danfoss Coil for Solenoid Valves:EV210B

Valve Models: Features EV220B, EV210B, EV220A, EV220W, and EV210A.
Connection Options: Includes G, NPT, and flange types.
Connection Sizes: Range from 1/4 inch to 1 inch.
Kv and Cv Values: Kv values up to 18 m³/h; Cv values up to 20.8 gal/min.
Materials: Made from brass, cast iron, DZR brass, and stainless steel.
Seal Materials: Available in EPDM, FKM, NBR, and PTFE.
Functional Types: Offered in Normally Closed (NC) and Normally Open (NO) configurations.

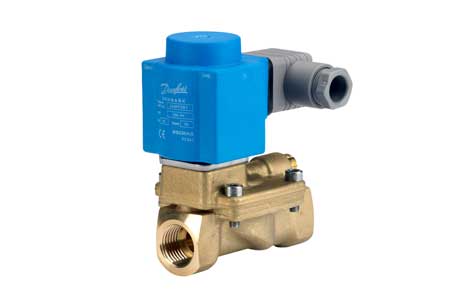

Danfoss Electric Valve:EV220B

Suitable for Multiple Media: Designed for water, oil, compressed air, and similar neutral media.
Wide Flow Range: Handles flow rates from 0.2 to 400 m³/h.
Operational Pressures: Supports differential pressures from 0.1 to 20 bar.
Temperature Range: Functions in media temperatures from -30°C to 140°C.
High Protection Rating: Coil enclosures rated up to IP67.
Material Options: Available in brass, dezincification resistant brass, and stainless steel.
Seal Types: Uses EPDM and NBR seals for diverse media compatibility.
Valve Functions: Offered in Normally Closed (NC) and Normally Open (NO) configurations.

Danfoss offers a comprehensive range of high-performance solenoid valves designed for industrial applications, available in direct-operated, servo-operated, and assisted lift versions. These valves are versatile enough to control and regulate fluids and non-flammable gases across various settings. Typically, Danfoss supplies the valve bodies and electrical coils separately to offer flexibility in assembly and maintenance, though complete units are available for specific requirements. Features include built-in pilot filters, adjustable closing times, and enclosures that can reach up to IP67 standards, ensuring durability and robust protection against environmental factors. These valves find applications in numerous industries, including laundry and dry-cleaning, industrial washing, autoclaves, plastic moulding machinery, steam boilers, and more, highlighting their adaptability and reliability in demanding conditions.

Frequently Asked Questions

What is the function of the Danfoss solenoid valve?

Danfoss solenoid valves are designed to control and regulate the flow of fluids and gases efficiently. These valves are used extensively in marine applications due to their high performance and reliability. They provide a simple and cost-effective solution for operating hydraulic and pneumatic systems by allowing for the precise control of liquid and gas movements.

What is the function of solenoid valve in?

Solenoid valves function as control units that manage the flow of fluids. They operate by either shutting off or allowing fluid flow when electrically energized or de-energized. This makes them essential for automated fluid control systems, where they provide quick and reliable switching operations for various industrial, commercial, and residential applications.

What are the two main types of solenoid valve?

The two main types of solenoid valves are direct-acting and pilot-operated valves. Direct-acting valves open or close the valve orifice directly via a magnetic plunger. Pilot-operated valves, on the other hand, use the line fluid pressure to open and close the valve, which is controlled by the solenoid. Both types are essential for precise control in fluid power systems.

What is the MOPD pressure?

MOPD, or Maximum Operating Pressure Differential, is the highest differential pressure at which a solenoid valve is designed to operate effectively. It represents the maximum allowable difference between the inlet and outlet pressures at the valve. Ensuring that the valve’s MOPD is not exceeded is crucial for optimal valve performance and longevity.
