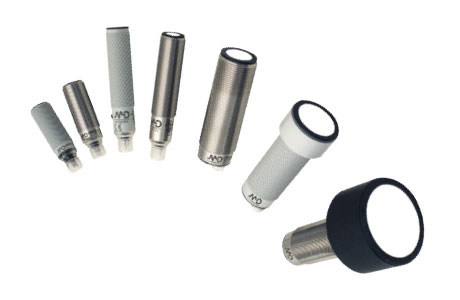

Datalogic Ultrasonic Sensor

At IndMALL Automation, we offer a Datalogic Ultrasonic Sensor, ideal for precise non-contact detection in industrial automation. These sensors use high-frequency sound waves to measure distance and detect objects, performing reliably across various materials and conditions. Perfect for challenging environments, they enhance efficiency in applications like level control and presence detection, ensuring robust and long-lasting performance in any setting.

US18-PA-5-N03-IH

Sensing face diameter: M18
Sensing range: 30…300 mm
Output type: Analog (4…20 mA)
Connection Type: M12 Connector
Supply Voltage: 10…30Vdc

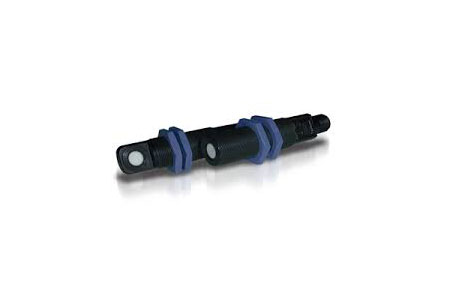

US18-PA-5-N03-OH

Sensing face diameter: M18
Sensing range: 30…300 mm
Output type: PNP/NPN
Connection Type: M12 Connector
Supply Voltage: 10…30Vdc

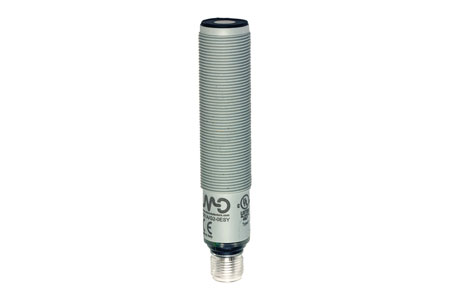

UK1A/G1-0ESY

Sensing face diameter: M18
Sensing range: 400 mm
Output type: 0…10V
Connection Type: M12 Connector
Supply Voltage: 10…30Vdc

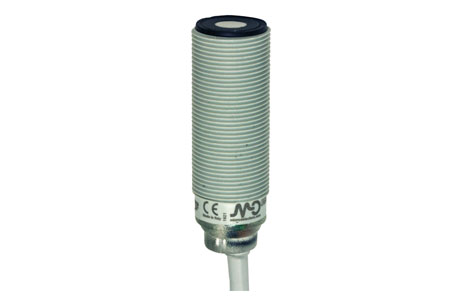

UK6A/H1-0AUL

Sensing face diameter: M18
Sensing range: 300 mm
Output type: 0…10V
Connection Type: 2m PVC Cable
Supply Voltage: 10…30Vdc

US50-PR-5-N43-IVH

Sensing face diameter: M50
Sensing range: 200…8000 mm
Output type: Analog (4…20 mA; 0…10 V))
Connection Type: M12 Connector
Supply Voltage: 10…30Vdc

At IndMALL Automation, we proudly feature Datalogic Ultrasonic Sensors, renowned for their accuracy and versatility in industrial automation. These sensors are expertly designed to detect a range of materials including solids, liquids, and granulated substances across various distances without contact. Utilizing high-frequency sound waves, Datalogic sensors can measure distances and detect objects, unaffected by color, transparency, or surface shine, making them ideal for complex automation tasks.

Datalogic Ultrasonic Sensors stand out for their ability to function optimally even in challenging environmental conditions such as dust, moisture, and high noise levels. Their robust construction ensures long-lasting performance and reliability in harsh industrial settings. Suitable for diverse applications such as level control, loop control, and presence detection, these sensors help streamline operations and improve efficiency across production lines.

Frequently Asked Questions

How to test an ultrasonic sensor?

To test an ultrasonic sensor, first connect it to a power source and your testing setup. Position a target object at different distances to simulate typical sensor uses.

Observe the sensor’s response to ensure it accurately detects and measures distance. Adjust settings as necessary to optimize performance for the specific application environment.

What is the voltage of ultrasonic sensor?

The voltage of an ultrasonic sensor typically ranges between 12 to 24 volts DC. This range ensures optimal functionality and reliability across various models and applications.

Always refer to the specific manufacturer’s specifications for the exact voltage requirements to ensure the sensor operates efficiently and safely within its intended setup.

What is the frequency of ultrasonic sensor?

Ultrasonic sensors operate by transmitting acoustic waves at frequencies typically between 25 and 50 kHz, which are above the human hearing range.

This frequency range allows for precise detection and measurement of distances, ensuring efficient performance in various industrial and consumer applications where accuracy is critical.

Kindly share your Datalogic Ultrasonic Sensors Requirement to sales@indmall.in
