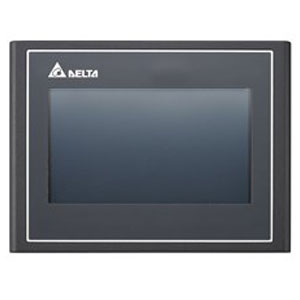

DOP-103SQ: Delta 480x272 Resolution HMI
Technical Specifications of Delta 480x272 Resolution HMI DOP-103SQ:
| Spec | Value |
|---|---|
| Display | 4.3" TFT LCD |
| Color | 16-bit |
| Display Area | 95.04 x 53.856 mm |
| Flash ROM (Bytes) | 256 MB |
Delta 480x272 Resolution HMI DOP-103SQ Technical Specifications:
| Specification | Value |
|---|---|
| Display | 4.3" TFT LCD |
| Color | 16-bit |
| Back Light | 480 x 272 |
| Resolution (Pixels) | LED Back Light |
| Back Light Brightness (cd/m2 ) | 400 |
| Back Light Life (Hour)*1 | 20,000 |
| Display Area | 95.04 x 53.856 mm |
| MCU | ARM Cortex-A8 (800 MHz) |
| Flash ROM (Bytes) | 256 MB |
| RAM (Bytes) | 256 MB |
| Touch Panel | Four-wire resistor, over > 10,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2K ~ 4K Hz) / 80 dB |
| Ethernet Interface | N/A |
| USB | 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0 |
| SD | N/A |
| Serial COM1/2/3/4 Port | COM1 RS-232 (supports hardware flow control) / RS-485 COM2 RS-422 / RS-485 COM3 N/A |
| RTC | Built-in |
| Cooling | Natural air circulation |
| Certification | CE / UL (please equip shielding cables and line filters with capacity of 300 ohm / 100 MHz) |
| Waterproof | IP65 / NEMA4 / UL Type 4X (indoor use only) |
| Operation Voltage*3 | DC +24V (-15% ~ +15%)*2, supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Voltage Endurance | AC500V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | Max. 5.67 W*3 |
| Backup Battery | 3V lithium battery CR2032 × 1 |
| Backup Battery Life | Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 o C), 10% ~ 55% RH (41 ~ 50 o C), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15 g peak for 11 ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 137 x 103 x 37.1 |
| Mounting Dimensions (W) x (H) mm | 118.8 x 92.8 |
| Weight | 280 g |
Ask for the Pricing of Delta 480x272 Resolution HMI, DOP-103SQ with budget-friendly prices. Specifications Overview for DOP-103SQ reveals 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0, N/A, 480 x 272 , 256 MB 4.3" TFT LCD 16-bit LED Back Light 400. And It Comes With 20000, 95.04 x 53.856 mm, ARM Cortex-A8 (800 MHz) 256 MB Four-wire resistor, over > 10,000,000 pressing times Multi-Tone Frequency (2K ~ 4K Hz) / 80 dB N/A
