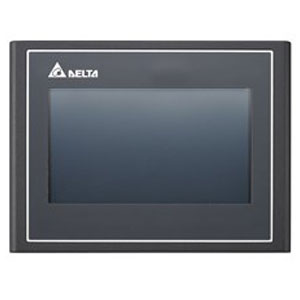

DOP-107EV: Delta Standard Ethernet Type (2 COM)
Technical Specifications of Delta Standard Ethernet Type (2 COM) DOP-107EV:
| Spec | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 16-bit |
| Display Area | 154.08 x 85.92 mm |
| Flash ROM (Bytes) | 256 MB |
Delta Standard Ethernet Type (2 COM) DOP-107EV Technical Specifications:
| Specification | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 16-bit |
| Back Light | 800 x 480 |
| Resolution (Pixels) | LED Back Light |
| Back Light Brightness (cd/m2 ) | 400 |
| Back Light Life (Hour)*1 | 20,000 |
| Display Area | 154.08 x 85.92 mm |
| MCU | ARM Cortex-A8 (800 MHz) |
| Flash ROM (Bytes) | 256 MB |
| RAM (Bytes) | 256 MB |
| Touch Panel | Four-wire resistor, over > 10,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2K ~ 4K Hz) / 80dB |
| Ethernet Interface | 1 Port*2, 10/100 Mbps auto-sensing |
| USB | 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0 |
| SD | N/A |
| Serial COM1/2/3/4 Port | COM1 RS-232 (supports hardware flow control)*2 (107PV non-isolated circuit) COM2 RS-232 (supports hardware flow control) / RS-485*2 (107PV non-isolated circuit) COM3 RS-422 / RS-485*2 (107PV non-isolated circuit) |
| RTC | Built-in |
| Cooling | Natural air circulation |
| Certification | CE (please use shielding Ethernet cables and magnetic rings with filters of 300 ohm / 100 MHz) |
| Waterproof | IP65 / NEMA4 / UL Type 4X (indoor use only) |
| Operation Voltage*3 | DC +24V (-15% ~ +15%)*2 (107PV non-isolated circuit) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Voltage Endurance | AC500 V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | Max. 8.76 W*3 |
| Backup Battery | 3V lithium battery CR2032 × 1 |
| Backup Battery Life | Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 o C), 10% ~ 55% RH (41 ~ 50 o C), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15 g peak for 11 ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 215 x 161 x 61.2 |
| Mounting Dimensions (W) x (H) mm | 196.9 x 142.9 |
| Weight | 970 g |
