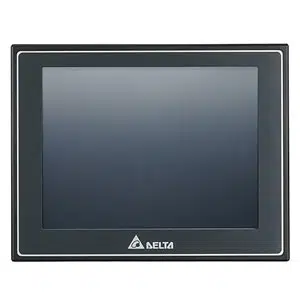

DOP-108IG: Delta 8 Inch HMI
Technical Specifications of Delta 8 Inch HMI DOP-108IG:
| Spec | Value |
|---|---|
| Display | 8" TFT LCD |
| Color | 16-bit |
| Display Area | 162 x 121.5 mm |
| Flash ROM (Bytes) | 256 MB |
Delta 8 Inch HMI DOP-108IG Technical Specifications:
| Specification | Value |
|---|---|
| Display | 8" TFT LCD |
| Color | 16-bit |
| Back Light | 800 x 600 |
| Resolution (Pixels) | LED Back Light |
| Back Light Brightness (cd/m2 ) | 250 |
| Back Light Life (Hour)*1 | 20,000 |
| Display Area | 162 x 121.5 mm |
| MCU | ARM Cortex-A8 (800 MHz) |
| Flash ROM (Bytes) | 256 MB |
| RAM (Bytes) | 256 MB |
| Touch Panel | Four-wire resistor, over > 10,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2 K ~ 4 K Hz) / 80 dB |
| Ethernet Interface | 1 Port*2, 10/100 Mbps auto-sensing |
| USB | 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0 |
| SD | SD x 1 |
| Serial COM1/2/3/4 Port | COM1 RS-232 (supports hardware flow control)*2 COM2 RS-232 (supports hardware flow control) / RS-485*2 COM3 RS-232 (supports hardware flow control) / RS-422 / RS-485*2 |
| RTC | Built-in |
| Cooling | Natural air circulation |
| Certification | CE (please use shielding Ethernet cables and magnetic rings with filters of 300 ohm / 100 MHz) |
| Waterproof | IP65 / NEMA4 (indoor use only) (110IG with UL Type 4X) |
| Operation Voltage*3 | DC +24V (-15% ~ +15%)*2, supplied by SELV circuits (isolated from MAINS by double insulation) |
| Voltage Endurance | A500V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | Max. 9.88 W*3 |
| Backup Battery | 3V lithium battery CR2032 x 1 |
| Backup Battery Life | Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 o C), 10% ~ 55% RH (41 ~ 50 o C), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15 g peak for 11 ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 227.1 x 174.1 x 61 |
| Mounting Dimensions (W) x (H) mm | 219.4 x 166.5 |
| Weight | 1,226 g |
Send Your Inquiry for Delta 8 Inch HMI, DOP-108IG with cost-effective solutions. Essential Technical Specs of DOP-108IG cover Four-wire resistor, over > 10,000,000 pressing times, Multi-Tone Frequency (2 K ~ 4 K Hz) / 80 dB, 1 Port*2, 10/100 Mbps auto-sensing, 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0 8" TFT LCD 16-bit 256 MB. It also delivers 800 x 600, LED Back Light, 250 20000 162 x 121.5 mm ARM Cortex-A8 (800 MHz) 256 MB. Capture the Best Deal with a Quote for your requirement of Delta 8 Inch HMI. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
