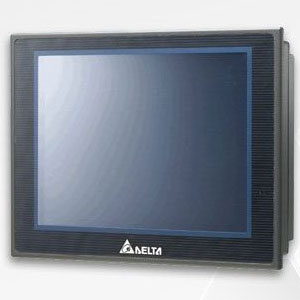

DOP-B07E515: Delta Ethernet Interface HMI
Technical Specifications of Delta Ethernet Interface HMI DOP-B07E515:
| Spec | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 65536 colors |
| Resolution Pixels | 800 x 600 |
| Back Light | LED Back Light |
Delta Ethernet Interface HMI DOP-B07E515 Technical Specifications:
| Specification | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 65536 colors |
| Resolution Pixels | 800 x 600 |
| Back Light | LED Back Light |
| Luminance (cd/m2 ) | 450 |
| Back Light Life (Hour)*1 | 20,000 |
| MCU | 408 MHz |
| Flash ROM (Bytes) | 128 MB |
| RAM (Bytes) | 64MB |
| Backup Memory (Bytes) | 16MB |
| Buzzer | Multi-Tone Frequency（2K ~ 4K Hz）／ 85dB |
| Ethernet | 1 Port |
| USB | 1 USB Host Ver 1.1 / 1 USB Client Ver 2.0 |
| Memory Card | SD card (supports SDHC) |
| Serial COM1/2/3 Port | COM1 RS-232 (Supports hardware flow control) COM2 RS-232 ／ RS-485(Note 2) COM3 RS-422 ／ RS-485(Note 2) |
| Perpetual Calendar (RTC) | Built-in |
| Cooling Method | Natural air circulation |
| Safety Approval | CE ／ UL |
| Waterproof Degree | IP65 ／ UL type 4x |
| Operation Voltage*3 | DC +24V（-10% ~ +15%） |
| Voltage Endurance | AC500V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | 7.68 W |
| Backup Battery | 3V lithium battery CR2032 x 1 |
| Backup Battery Life | It depends on the temperature used and the conditions of usage, about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 o C ~ +60 o C |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40° C), 10% ~ 55% RH (41 ~ 50 o C), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5Hz ~ 8.3Hz = Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g |
| Shock | IEC 60068-2-27 compliant 15g peak for 11 ms duration, X, Y, Z directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 184 × 144 × 50 |
| Mounting Dimensions (W) x (H) mm | 172.4 × 132.4 |
| Weight | Approx. 800 g |
