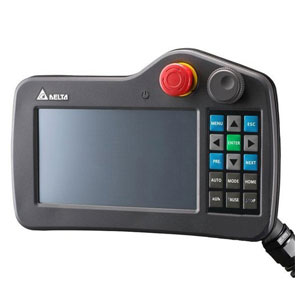

DOP-H07E465: Delta HD Display HMI
Technical Specifications of Delta HD Display HMI DOP-H07E465
Spec | Value |
---|---|
Display Size and Type | 7" Widescreen TFT LCD |
Color | 65536 colors |
Resolution (Pixels) | 800 x 480 |
Back Light | LED Back Light |
Delta HD Display HMI DOP-H07E465 Technical Specifications:
Specification | Value |
---|---|
Display Size and Type | 7" Widescreen TFT LCD |
Color | 65536 colors |
Resolution (Pixels) | 800 x 480 |
Back Light | LED Back Light |
Luminance (cd/m2 ) | 450 |
Back Light Life (Hour)*1 | 20,000 |
MCU | 400 MHz |
Flash ROM (Bytes) | 128 MB |
RAM (Bytes) | 64 MB |
Backup Memory (Bytes) | 16 MB |
Buzzer | Multi-Tone Frequency(2K ~ 4K Hz)/ 80dB |
Ethernet | 1 Ports(Note2) |
USB | 1 USB Client Ver 2.0 |
SD | SD card (supports SDHC) |
Serial COM Port | N/A |
Cable Length & Type | End of Model Name: 5 - 5 m End of Model Name: A - 10 m |
Emergency Stop | B-contact: 2 Rated voltage: DC 30V Maximum rated current: 1A Minimum allowable load: DC 5V/1 mA Complies with IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, UL 508, and CSA C22.2 No.14, GB 14085.5 |
3-Position Operation Switch | A-contact: 1 Rated voltage: DC 30V Maximum rated current: 700 mA Minimum allowable load:DC 3 V/5mA Complies with EN/IEC60947-5-8, IEC60947-5-1, EN60947-5-1, JIS C8201-5-1, UL508, and CSA C22.2 NO. 14 Applicable standards for use with ISO12100-1, -2/EN12100-1, -2, IEC60204-1/EN60204-1, ISO11161/prEN11161, ISO10218/EN775, ANSI/RIA R15.06, ANSI B11.19 |
Perpetual Calendar (RTC) | Built-in |
Cooling Method | Natural cooling |
Safety Approval | CE |
Waterproof Level of Panel Display | IP55 |
Operation Voltage*3 | DC +24V (±15%) (with built-in isolated power circuit)(Note2) |
Voltage Endurance | AC500V for 1 minute (between charging (DC24V terminal) and FG terminals) |
Power Consumption*5 | 5.6W |
Backup Battery | 3V lithium battery CR2450 × 1 |
Backup Battery Life | About 5 years or more at 25oC but subjects to the temperature and the conditions during usage. |
Operation Temperature | 0 o C ~ 40 o C |
Storage Temperature | -20 oC ~ +60 oC, 10% ~ 90% RH |
Operating Environment | 10% ~ 90% RH【0 ~ 40 oC】; 10% ~ 55% RH【41 ~ 50 oC】; Pollution Degree 2 |
Viberation | Conforms to IEC61131-2; Continuous: 5Hz ~ 8.3Hz 3.5 mm, 8.3Hz ~ 150Hz 1G |
Shock | Conforms to IEC60068-2-27; 11ms, 15G Peak , X, Y, Z direction for 6 times |
Dimensions (W) x (H) x (D) mm | 257.4 × 170.3 × 71.8 (Emergency stop switch and hook are included.) |
Weight | 750 g (cable excluded) |
