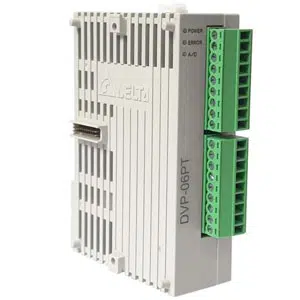

DVP06PT-S: Delta 6 Points Platinum RTD
Technical Specifications of DVP06PT-S Delta 6 Points Platinum RTD
| Spec | Value |
|---|---|
| Built-in | - |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | 0.1 °C |
| Voltage input/output | - |
| Current input/output | - |
Delta 6 Points Platinum RTD DVP06PT-S Technical Specifications:
| Specification | Value |
|---|---|
| Built-in | - |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | 0.1 °C |
| Analog I/O Modules | 6 points of platinum RTD (Pt100, Pt1000, Ni100, Ni1000) sensor input |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2W |
| Voltage input/output | - |
| Current input/output | - |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 200ms |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Talk to Our Engineer for Delta 6 Points Platinum RTD DVP06PT-S with exclusive offers. Core System Specifications of DVP06PT-S are 6 points of platinum RTD (Pt100, Pt1000, Ni100, Ni1000) sensor input, Resolution: 0.1 °C, fuse ES: 2A/ 250VAC; SV: 2.5A/ 30VDC. It Comes With power supply of 24VDC (-15%~20%), >5 MΩ (all I/O point-to-ground: 500VDC) insulation impedance. Don't Miss Out on a Quote for your requirement of Delta 6 Points Platinum RTD. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
