Delta DVP-EH3 Series

The Delta PLC DVP Series includes the DVP-EH3 model, engineered for high-speed motion control and precision automation in industrial environments. It delivers fast processing performance and accurate positioning for synchronized industrial machinery.

• Ideal for: High-speed motion and multi-axis positioning systems
• Pulse Output: 4 high-speed outputs supporting precise motion control
• High-Speed Counters: Dedicated hardware counters for accurate signal tracking
• Interrupt Handling: Supports up to 16 external interrupt points
• Connectivity: PLC-Link communication for linking up to 32 units

Delta DVP-EH Series

The PLC Delta DVP-EH Series is a modular controller designed for reliable machine automation and flexible I/O expansion. It supports stable logic execution for OEM equipment and mid-range industrial applications.

• Digital I/O: Supports 8 to 48 digital input/output points
• Analog Support: Compatible with temperature and load cell modules
• Precision: 24-bit resolution load cell measurement capability
• Communication: Expansion modules for networking and remote I/O
• Performance: High-speed processing with accurate signal handling

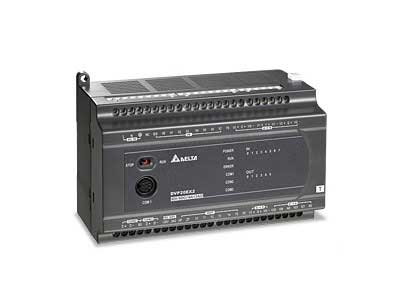

Delta DVP-ES2 Series

The DVP-ES2 Series is a Delta Programmable Logic Controller developed by Delta Electronics for compact and mid-scale industrial automation systems. It delivers stable logic execution, flexible communication capability, and scalable expansion support for panel-based machine control applications.

• MPU Capacity: 16 to 60 built-in digital I/O points
• Program Memory: 16K steps supporting structured ladder logic programs
• Communication Ports: 1 × RS-232 and 2 × RS-485 independent serial interfaces
• Maximum I/O Expansion: Expandable up to 256 digital and analog I/O points
• High-Speed Inputs: 8 integrated inputs supporting multiple high-speed counting modes

Delta DVP-ES3 Series

The DVP-ES3 Series is a compact automation controller powered by a high-speed Delta PLC CPU for reliable industrial machine control. It supports fast processing and precise positioning for motion-based applications.

• CPU: 32-bit high-speed processor architecture
• Built-in I/O Points: 32, 48, 64, and 80 point configurations
• Maximum I/O Capacity: Expandable up to 256 digital and analog points
• High-Speed Counters: 4 hardware counters up to 200 kHz
• Position Output: 4-axis high-speed pulse output at 200 kHz

Delta DVP-EC3 Series

The DVP-EC3 is a cost-effective Delta PLC Series designed for entry-level automation and compact industrial control panels. It provides reliable logic processing and communication flexibility for small to medium machine applications.

• MPU Models: Available in 10, 14, 16, 24, 32, and 60 point configurations
• Maximum I/O Capacity: Supports up to 60 digital input and output points
• Program Memory: Handles up to 4K steps for structured control logic
• Communication Ports: Built-in RS-232 and RS-485 interfaces (16–60 point models)
• High-Speed Counters: Includes 4 integrated hardware counter channels

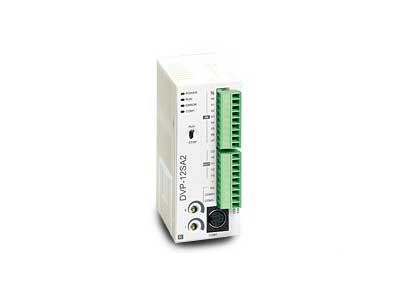

Delta DVP-SA2 Series

The DVP-SA2 Series is a programmable logic controller developed by Delta Electronics for scalable industrial automation and distributed control applications. As part of the Delta DVP PLC family, it provides modular I/O expansion and reliable communication capability for machine-level and panel-based systems.

• MPU Configuration: 12 built-in I/O points (8 Digital Inputs + 4 Digital Outputs)
• Maximum I/O Expansion: Expandable up to 492 total I/O points
• Program Capacity: 16K steps supporting structured control logic
• Communication Interfaces: Integrated RS-232 and dual RS-485 ports
• Protocol Compatibility: Supports Modbus ASCII and Modbus RTU standards
• High-Speed Pulse Output: Dual 100 kHz outputs and dual 10 kHz outputs

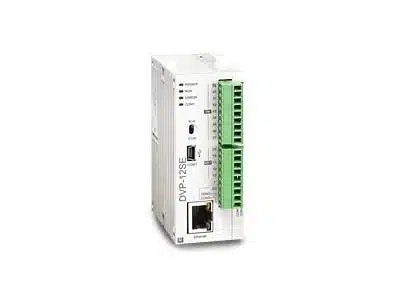

Delta DVP-SE Series

The DVP-SE Series is a Delta PLC with Ethernet Port engineered for communication-driven automation systems requiring stable networking and scalable control performance.

• Program Capacity: 16K steps for structured logic execution
• Data Register Memory: 12K words for application data handling
• Execution Speed: Fast instruction processing (LD 0.64 μs, MOV 2 μs)
• Network Connectivity: Built-in Ethernet with MODBUS TCP support
• Security Feature: IP filter protection for controlled network access
• Module Compatibility: Supports DVP-S left and right-side expansion modules

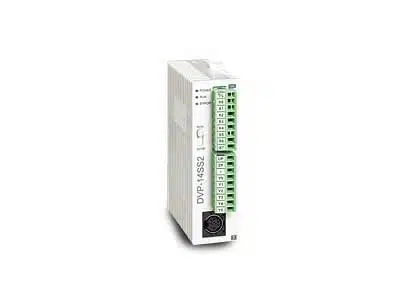

Delta DVP-SS2 Series

The Delta SS2 PLC is a compact programmable controller designed for small automation systems and space-constrained industrial control panels. It provides reliable logic execution with expandable I/O capability for machine-level control applications.

• MPU Points: 14 total I/O points (8 Digital Inputs + 6 Digital Outputs)
• Maximum I/O Expansion: Expandable up to 494 total input/output points
• Program Capacity: Supports up to 8K steps of user program memory. Communication Ports: Integrated RS-232 and RS-485 serial communication interfaces
• High-Speed Pulse Output: Four independent pulse outputs up to 10 kHz frequency

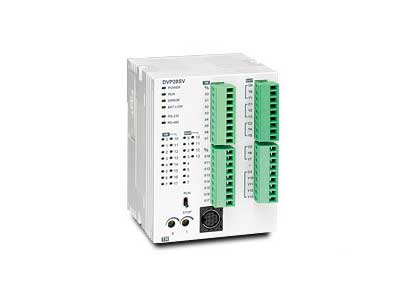

Delta DVP-SV2 Series

The Delta DVP-SV2 Series is a motion-focused programmable logic controller designed for high-speed positioning and synchronized industrial automation systems. It delivers stable pulse control performance and advanced motion instructions for precision machine operations.

• High-Speed Pulse Output: 4 sets at 200 kHz for precise motion positioning
• High-Speed Counters: 4 hardware counters supporting 200 kHz signal input
• Advanced Motion Control: Built-in high-speed positioning and control instructions
• Interpolation Function: Supports linear and arc interpolation movement control
• External Interrupt Support: Up to 16 external interrupt pointers available

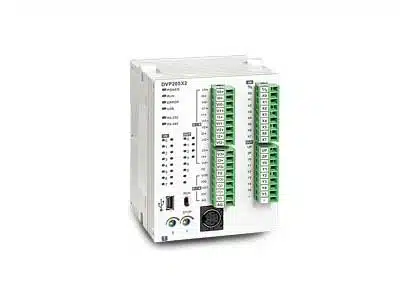

Delta DVP-SX2 Series

The Delta DVP-SX2 Series is an analog-integrated programmable logic controller designed for compact industrial automation systems. It supports precise digital and analog signal processing with flexible communication options for machine-level control applications.

• Built-in I/O Configuration: 20 points (8DI, 6DO, 4AI, 2AO)
• Maximum I/O Expansion Capacity: Expandable up to 494 total I/O points
• Program Memory Capacity: Supports structured programs up to 16K steps
• Communication Interface Options: RS-232, RS-485, and USB ports included
• High-Speed Pulse Output Capability: 2 × 100 kHz and 2 × 10 kHz outputs
• Integrated Motion Control Features: Built-in high-speed counters with analog processing support

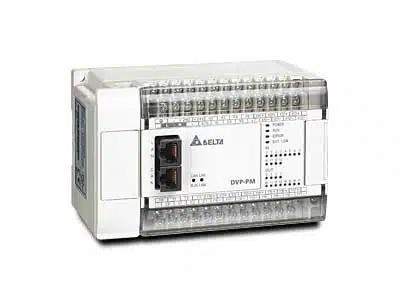

Delta DVP-10 PM Series

The DVP-10 PM Series is a motion-focused Delta PLC Controller designed for high-speed positioning and precise automation control. It provides stable pulse output performance and advanced motion instructions for compact industrial machinery applications.

• MPU Points: 24 built-in digital input and output points
• Maximum I/O Expansion: Supports expansion up to 256 total I/O points
• Program Capacity: 64K steps for advanced logic programming
• High-Speed Counters: Six hardware counters rated at 200 kHz
• Differential Outputs: Four independent 1 MHz pulse output channels
• Motion Functions: Single-axis positioning with zero return capability
• PWM Output: 200 kHz pulse width modulation with 0.3% resolution

Delta DVP-15 MC Series

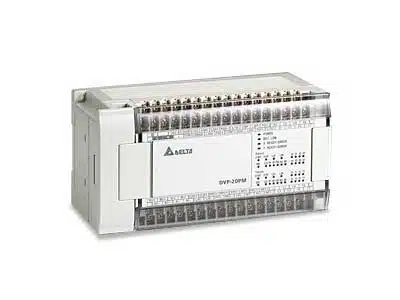

Delta DVP-20 PM Series

The DVP-20 PM is part of the Delta DVP Series PLC range designed for high-speed motion control and complex industrial automation systems. It delivers strong processing performance with scalable I/O expansion, making it suitable for advanced machine control applications.

• MPU Configuration: 16 integrated control points
• Maximum I/O Expansion: Expandable up to 512 total I/O points
• Program Capacity: 64K steps for structured logic execution
• Communication Interfaces: Built-in RS-232 and RS-485 support
• High-Speed Pulse Output: Up to 500 kHz positioning capability
