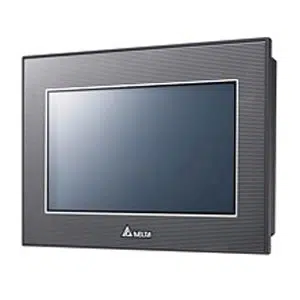

TP70P-21EX1T: Delta Transistor Outputs HMI
Technical Specifications of Delta Transistor Outputs HMI TP70P-21EX1T:
| Spec | Value |
|---|---|
| Output Type | Transistor |
| CPU | 32-bit CPU and ASIC dual processors that support floating point operations. |
| Program Memory | 64 Mbytes |
| Power Supply Voltage | 24 VDC (-15% ~ 20%) (DC input power polarity reversal protection) |
Delta Transistor Outputs HMI TP70P-21EX1T Technical Specifications:
| Specification | Value |
|---|---|
| Output Type | Transistor |
| DI | 8 |
| DO | 8 |
| AI*2 | 2(I) |
| AO*2 | 1 (I) |
| CPU | 32-bit CPU and ASIC dual processors that support floating point operations. |
| Program Memory | 64 Mbytes |
| Power Supply Voltage | 24 VDC (-15% ~ 20%) (DC input power polarity reversal protection) |
| Power Consumption | 24W |
| Power Protection | DC input power polarity reversal protection |
| Insulation resistance | > 5 MΩ (The voltage between all I/O terminals and the ground is 500 V DC.) |
| Noise Immunity | ESD (IEC 61131-2, IEC 61000-4-2): 8 kV air discharge EFT (IEC 61131-2, IEC 61000-4-4): Power line: 2 kV, Digital I/O: 1 kV, Analog & Communication I/O: 1 kV Damped-Oscillatory Wave: Power Line: 1 kV, Digital I/O: 1 kV RS (IEC 61131-2, IEC 61000-4-3): 26 MHz~1 GHz, 10 V/m |
| Ground | The diameter of the ground used should not be less than the diameters of the wires connected to the power terminals of the PLC used. (If several PLCs are used simultaneously, please use single-point ground.) |
| Operating Temperature | 0°C~50°C Relative humidity: 20%~90% RH【0~40°C】,10%~55% RH【41~50°C】 Pollution degree 2 (No condensation) |
| Storage Temperature | -20°C~60°C |
| Waterproof Class of the Front Panel | Transfer of thermal energy via convection |
| Vibration/Shock resistance | International standards IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Cooling method | Transfer of thermal energy via convection |
Get A Quote for Delta Transistor Outputs HMI, TP70P-21EX1T at the best price. Here are the brief Technical Specifications of TP70P-21EX1T: DC input power polarity reversal protection, > 5 MΩ (The voltage between all I/O terminals and the ground is 500 V DC.), Transistor, 8. And it offers 32-bit CPU and ASIC dual processors that support floating point operations., 64 Mbytes, 24 VDC (-15% ~ 20%) (DC input power polarity reversal protection). It's Time to get a Quote for your requirement of Delta Transistor Outputs HMI. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
