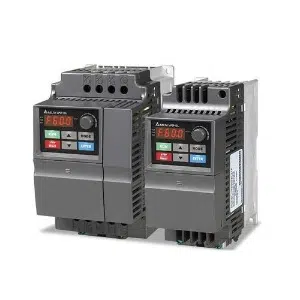

VFD002E23P: Delta 0.25HP 230V 3-Phase Cold Plate
Technical Specifications of Delta 0.25HP 230V 3-Phase Cold Plate VFD002E23P:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.2 kW |
| Applicable Motor Output (HP) | 0.25 HP |
| Output Capacity (kVA) | 0.6 kVA |
Delta 0.25HP 230V 3-Phase Cold Plate VFD002E23P Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 230V, Three-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.2 kW |
| Applicable Motor Output (HP) | 0.25 HP |
| Output Capacity (kVA) | 0.6 kVA |
| Output Current (A) | 1.6 A |
| Cooling Method | Natural cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | P: Cold plate drive (frame A only) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight (kg) | 1.1 kg |
Call us for Delta 0.25HP 230V 3-Phase Cold Plate, VFD002E23P at competitive rates. Technical Attributes of VFD002E23P are Below 90% RH (non-condensing), Adjustable V/F pattern, P: Cold plate drive (frame A only) & IP20. And It Delivers 0.2 kW, 0.25 HP & 0.6 kVA. Unlock Exclusive Pricing with a Quote for your requirement of Delta 0.25HP 230V 3-Phase Cold Plate. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
