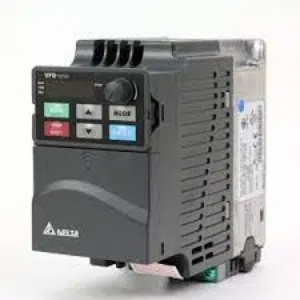

VFD007E43T : Delta Built-in Brake Chopper
Technical Specifications of Delta Built-in Brake Chopper VFD007E43T:
- Series: E
- Input Voltage: 460V Three-phase
- Motor Output (kW): 0.75 kW
- Motor Output (HP): 1 HP
- Output Capacity (kVA): 2 kVA
- Cooling Method: Natural Cooling
- Enclosure Rating: IP20.
Delta Built-in Brake Chopper VFD007E43T Technical Specifications:
| Series Name | E |
| Input Voltage / Frequency | 230V, Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Current (A) | 2.5 A |
| Output Capacity (kVA) | 2 kVA |
| Cooling Method | Natural Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20’C~60’C |
| Ambient Humidity | Below 90% RH (non-condensing) |
| Version Type | T: Frame A, built-in brake chopper |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (342-528V) |
| Net Weight | 1.2 kg |
IndMALL Offers Delta VFD007E43T, a Series E variable frequency drive with a built-in brake chopper, featuring an input voltage of 460V three-phase, motor output of 0.75 kW (1 HP), an output capacity of 2 kVA, natural cooling, and an enclosure rating of IP20.
