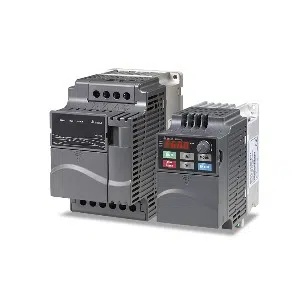

VFD015E23A : Delta 230V 3-phase Drive
Technical Specifications of Delta 230V 3-phase Drive VFD015E23A:
- Series: E
- Input Voltage: 230V Three-phase
- Motor Output (kW): 1.5 kW
- Motor Output (HP): 2 HP
- Output Capacity (kVA): 2.9 kVA
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
Delta 230V 3-phase Drive VFD015E23A Technical Specifications:
| Series Name | E |
| Input Voltage / Frequency | 230V, Three-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 1.5 kW |
| Applicable Motor Output (HP) | 2 HP |
| Output Current (A) | 7.5 A |
| Output Capacity (kVA) | 2.9 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20’C~60’C |
| Ambient Humidity | Below 90% RH (non-condensing) |
| Version Type | A: Standard drive |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight | 1.9 kg |
The IndMALL Offers Delta VFD015E23A, a Delta 230V 3-phase Drive, featuring a 1.5 kW motor output (2 HP), an output capacity of 2.9 kVA, and an efficient fan cooling system, all enclosed in an IP20 rated unit.
