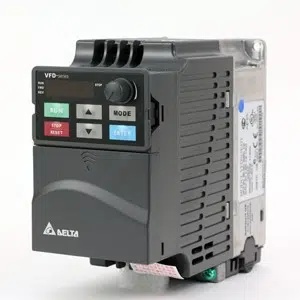

VFD037E23A : Delta 3.7 kW Drive
Technical Specifications of Delta 3.7 kW Drive VFD037E23A:
- Series: E
- Input Voltage: 230V Single-phase
- Motor Output (kW): 3.7 kW
- Motor Output (HP): 5 HP
- Output Capacity (kVA): 6.5 kVA
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
Delta 3.7 kW Drive VFD037E23A Technical Specifications:
| Series Name | E |
| Input Voltage / Frequency | 230V, Three-Phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 3.7 kW |
| Applicable Motor Output (HP) | 5 HP |
| Output Current (A) | 17 A |
| Output Capacity (kVA) | 6.5 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20’C~60’C |
| Ambient Humidity | Below 90% RH (non-condensing) |
| Version Type | A: Standard drive |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight | 1.9 kg |
IndMALL offers the Delta VFD037E23A, a 3.7 kW Drive from the Series E, featuring a 230V single-phase input voltage, 5 HP motor output, 6.5 kVA output capacity, fan cooling, and an enclosure rating of IP20.
