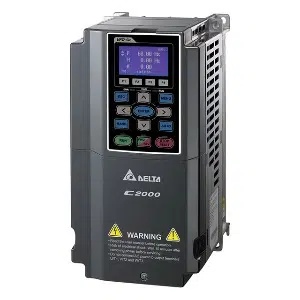

VFD055C23A : Delta VFD 5.5 kW
Technical Specifications of Delta VFD 5.5 kW VFD055C23A:
- Series: C2000
- Input Voltage: 230V Three-phase
- Motor Output (kW): 5.5 kW
- Motor Output (HP): 7.5 HP
- Output Current (A): 25 A
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
Delta VFD 5.5 kW VFD055C23A Technical Specifications:
| Series Name | C2000 |
| Input Voltage / Frequency | 230V, Three-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA)-NORMAL DUTY | 10 kVA |
| Output Current (A) -NORMAL DUTY | 25 A |
| Applicable Motor Output (kW)-NORMAL DUTY | 5.5 kW |
| Applicable Motor Output (HP)-NORMAL DUTY | 7.5 HP |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Efficiency (%) | 97.8 |
| Storage/Transportation Temperature | -25 ~ 70 |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Braking Chopper | Built-in |
| Control Method | Pulse Width Modulated (PWM) |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Input Rated Voltage/Frequency | 170 ~ 264Vac |
| Drive Weight (Kg) | 5.4 ± 1 kg |
The Delta VFD 5.5 kW, part of the C2000 Series, is designed for robust three-phase motor control. With a motor output of 5.5 kW and 7.5 HP, it efficiently manages a 25 A output current. IndMALL offers the Delta VFD055C23A, featuring fan cooling and an IP20 enclosure rating, ensuring reliable performance in various industrial applications. This VFD is an ideal solution for enhancing motor efficiency and precision in demanding environments.
