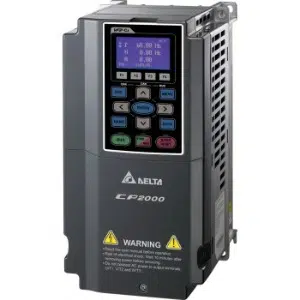

VFD055CP4EB-21: Delta 5.5kW Robust Design VFD
Technical Specification of Delta 5.5kW Robust Design VFD VFD055CP4EB-21:
Spec | Value |
---|---|
Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
Output Capacity (kVA) Normal Duty | 21 A |
Applicable Motor Output (kW) Normal Duty | 5.5 kW |
Applicable Motor Output (HP) Normal Duty | 7.5 HP |
Delta 5.5kW Robust Design VFD VFD055CP4EB-21 Technical Specifications:
Specification | Value |
---|---|
Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
Output Capacity (kVA) Normal Duty | 8.4 kVA |
Output Current (A) Normal Duty | 21 A |
Applicable Motor Output (kW) Normal Duty | 5.5 kW |
Applicable Motor Output (HP) Normal Duty | 7.5 HP |
Cooling Method | Fan Cooling |
Efficiency (%) | 96 |
IP Level | IP20 |
NEMA Protection Level | NEMA 1 |
Storage/Transportation Temperature | -25ºC ~ +70ºC |
Braking Chopper | Built-In Braking Chopper |
Control Method | Pulse Width Modulation (PWM) |
Installation Type | Wall-Mounting |
V/F Curve | 4 point adjustable V / F curve and square curve |
Input Frequency Tolerance | 47~63Hz |
Voltage Tolerance | 232~528Vac |
IndMALL Dealing in Delta 5.5kW Robust Design VFD, VFD055CP4EB-21 at the best rates. Operational Specifications for VFD055CP4EB-21 are NEMA 1, Built-In Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. And It Delivers 5.5 kW, 8.4 kVA & 21 A. Unlock Exclusive Pricing with a Quote for your requirement of Delta 5.5kW Robust Design VFD. Experience the advantage of our pricing and support against other Traders.
