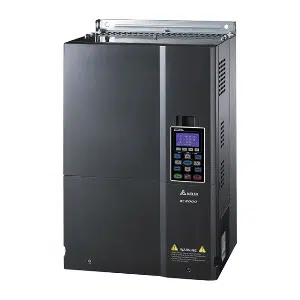

VFD075C43E: Delta 7.5kW High-Power Drive
Technical Specifications of Delta 7.5kW High-Power Drive VFD075C43E:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 14 kVA |
| Output Current (A) Normal Duty | 18 A |
| Applicable Motor Output (kW) Normal Duty | 7.5 kW |
| Applicable Motor Output (HP) Normal Duty | 10 HP |
Delta 7.5kW High-Power Drive VFD075C43E Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 14 kVA |
| Output Current (A) Normal Duty | 18 A |
| Applicable Motor Output (kW) Normal Duty | 7.5 kW |
| Applicable Motor Output (HP) Normal Duty | 10 HP |
| Cooling Method | Fan cooling |
| Efficiency (%) | 97.8 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Built-IN Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Built-in conduit box |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 5.4 ± 1 kg |
Reach Us by Email for Delta 7.5kW High-Power Drive, VFD075C43E at Discounted Rates. Key Technical Features of VFD075C43E are No NEMA Protection Level, Built-IN Braking Chopper, Pulse Width Modulated (PWM) & Built-in conduit box. Additionally, it provides 7.5 kW, 14 kVA & 18 A. Navigate Your Needs with a Quote for your requirement of Delta 7.5kW High-Power Drive. Our pricing and support are unrivaled, especially when compared to other Competitors.
