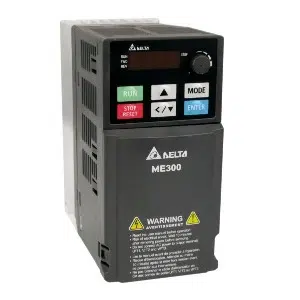

VFD0A8ME21AFNAA: Delta 1/8 HP VFD
Technical Specifications of VFD0A8ME21AFNAA Delta 1/8 HP VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.1 |
| Applicable Motor Output (HP) | 1/8 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 1/8 HP VFD0A8ME21AFNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.1 |
| Applicable Motor Output (HP) | 1/8 |
| Heavy Duty Rated Output Current (A) | 0.8 |
| Normal Duty Rated Output Current (A) | 1 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 x 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.4 |
IndMALL offers the Delta 1/8 HP VFD, model VFD0A8ME21AFNAA, featuring a 230V single-phase AC input and natural air cooling. With a motor output of 0.1 kW and output current of 0.8 A, it integrates a built-in EMC filter and braking chopper. Designed for efficiency and reliability, it supports V/F and SVC control methods, protected by an IP20 rating. This Delta VFD ME300 series ensures optimal performance for various applications.
