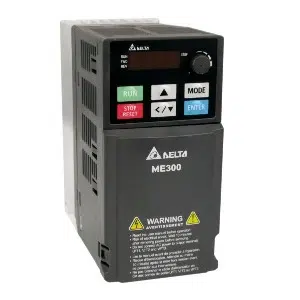

VFD0A8ME21AFSAA: Delta 0.1kW VFD
Technical Specifications of VFD0A8ME21AFSAA Delta 0.1kW VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.1 |
| Applicable Motor Output (HP) | 1/8 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 0.1kW VFD0A8ME21AFSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.1 |
| Applicable Motor Output (HP) | 1/8 |
| Heavy Duty Rated Output Current (A) | 0.8 |
| Normal Duty Rated Output Current (A) | 1 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 x 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.4 |
The Delta 0.1kW VFD, a standard model of the ME300 series, is designed for single-phase AC input with a voltage of 230V, delivering an output of 0.1 kW (1/8 HP) and 0.8 A. This VFD incorporates natural air cooling, a built-in EMC filter, and a braking chopper, ensuring optimal performance with control methods including V/F and SVC. IndMALL Offers Delta VFD0A8ME21AFSAA, featuring IP20 protection, making it a reliable choice for various industrial applications.
