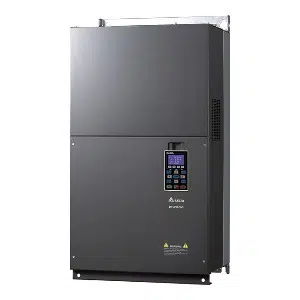

VFD1100C63B-00: Delta 110kW Advanced System
Technical Specifications of Delta 110kW Advanced System VFD1100C63B-00:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 124 kVA |
| Output Current (A) Normal Duty | 104 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
Delta 110kW Advanced System VFD1100C63B-00 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 124 kVA |
| Output Current (A) Normal Duty | 104 A |
| Applicable Motor Output (kW) Normal Duty | 90 kW |
| Applicable Motor Output (HP) Normal Duty | 125 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 61±1.5 kg |
Please speak to our Technical Engineer for Delta 110kW Advanced System, VFD1100C63B-00 at attractive prices. Technical Specs Summary of VFD1100C63B-00 includes UL Open Type, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. And Special Features Are 124 kVA, 104 A & 90 kW. Match Your Needs with a Quote for your requirement of Delta 110kW Advanced System. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
